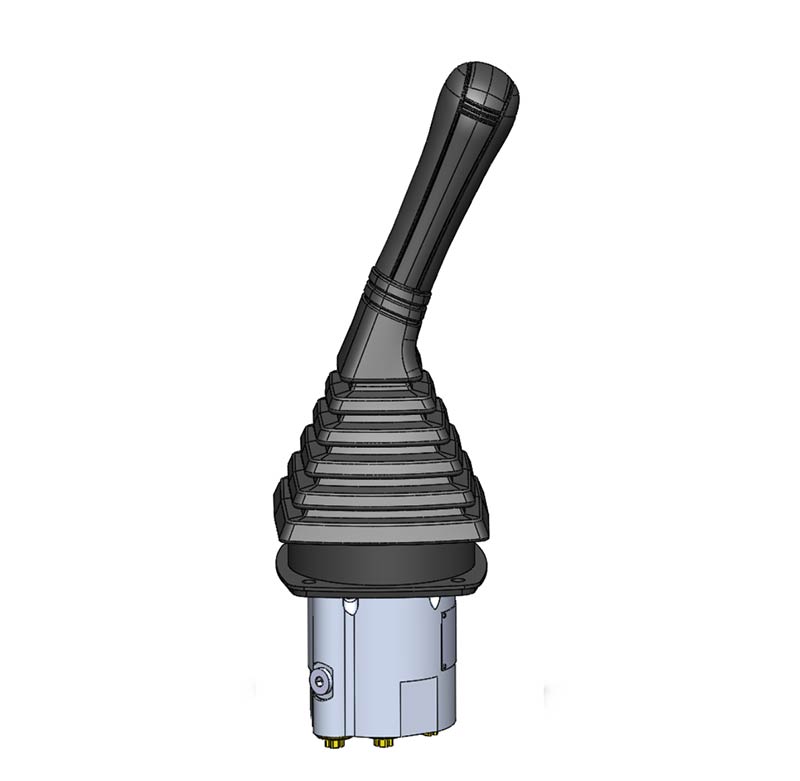

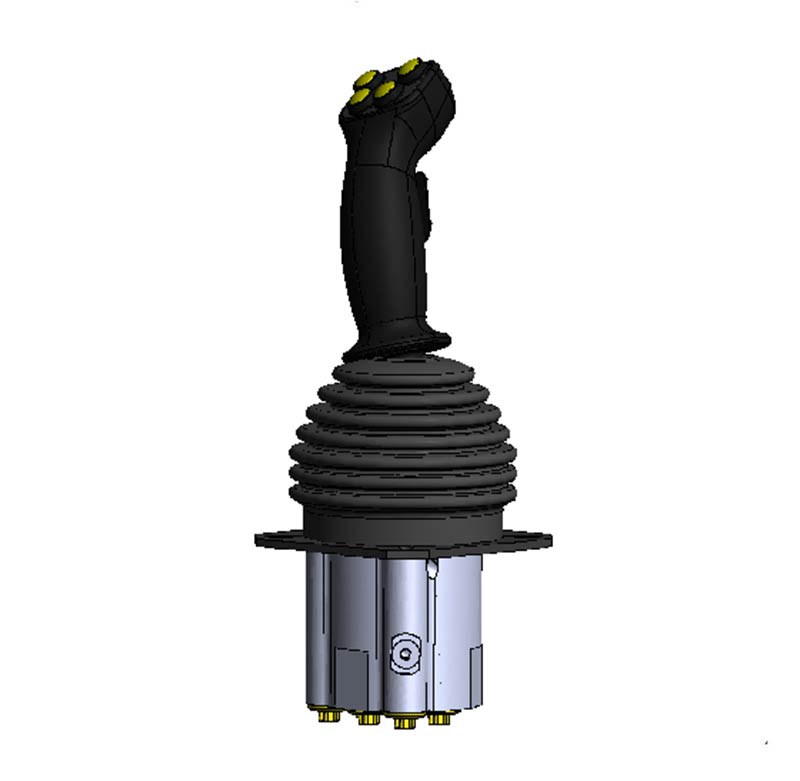

JSH Hydraulic Joysticks

Built using proprietary Step Bore Technology, our hydraulic joysticks provide up to 30 lpm flow with up to 50% less effort than conventional pilot valves, while maintaining precision hysteresis below 1%.

KEY FEATURES/BENEFITS:

  • Low-effort design reduces operator fatigue
  • High response delivers accuracy and control
  • Aluminum body and cartridge design provide lower leakage, lower mass, and better-quality control
  • On-spool dampening for less noise
  • Easily configurable to deliver the optimum design for your specific application
  • Standard and custom port sizes
  • Multiple handle options and configurations
Working Pressure: 40 BAR
Max Operating Pressure: 100 BAR
Max Back Pressure: 3 BAR
Max Flow: 25 L/min
Temperature Range: -20 deg C ~ 90 deg C
Fluid Type: Mineral Oil ISO, HM & HV (10W recommended)
Max Install Torque: 390 kgf/cm
Service Ports: G1/4”BSPP & #6 SAE (9/16″-18 UNF)
Body Material: Aluminum

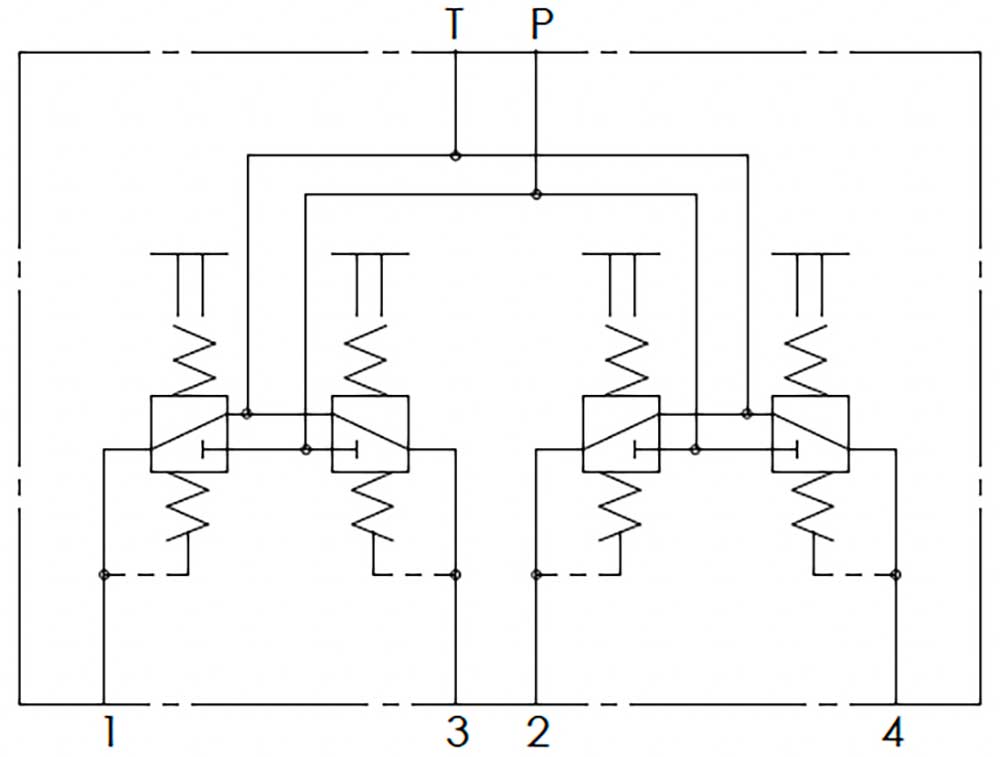

Traditional

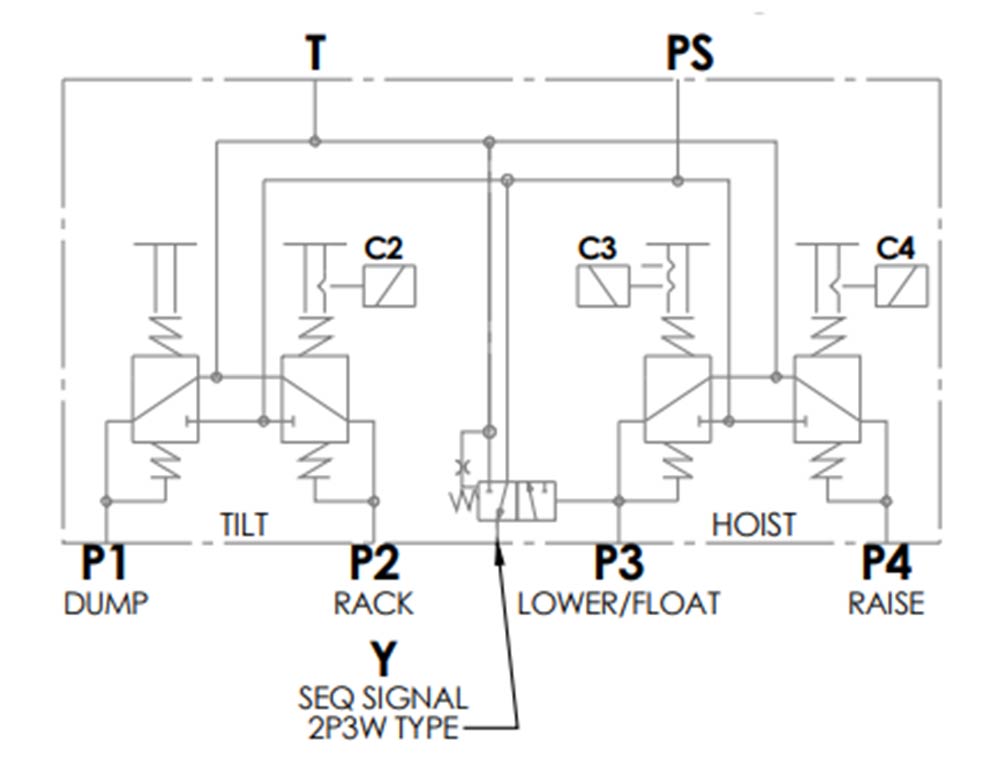

With Sequence Valve

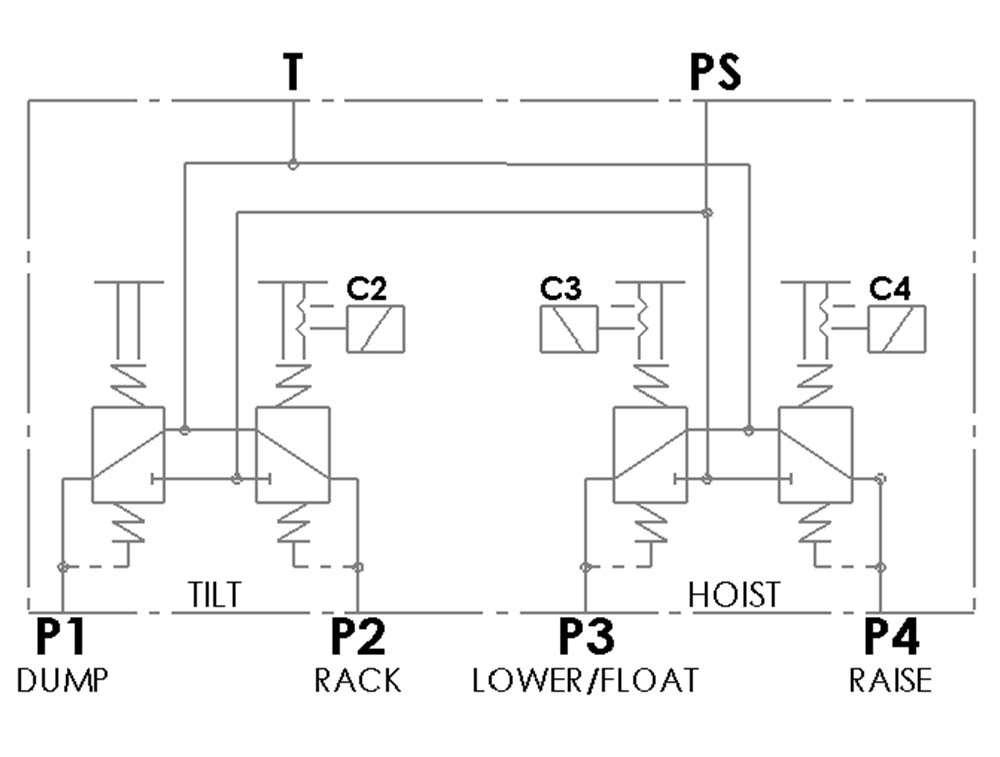

With Forewarning Bumpers & Electro-Magnetic Detents

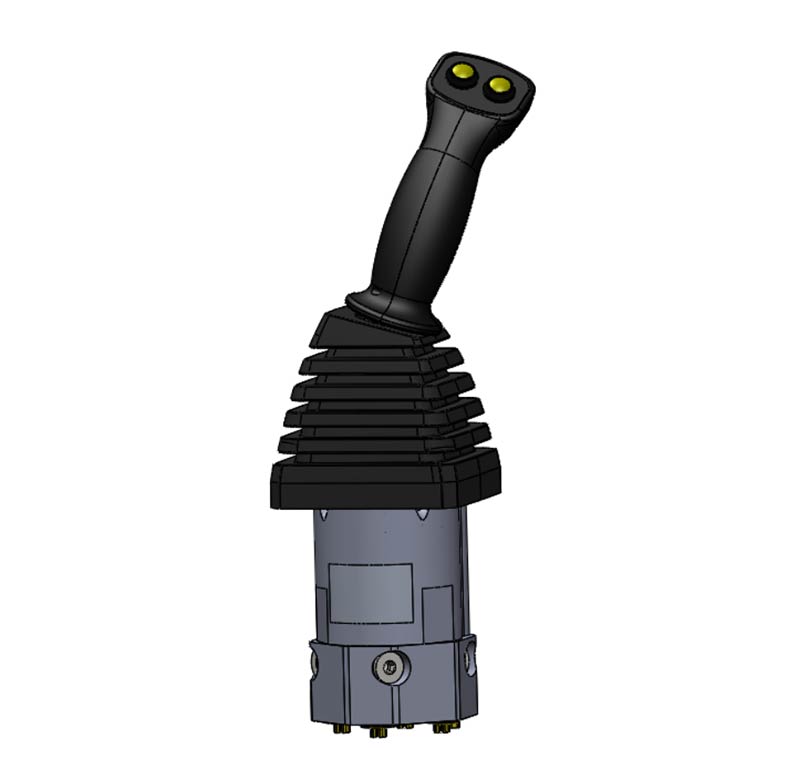

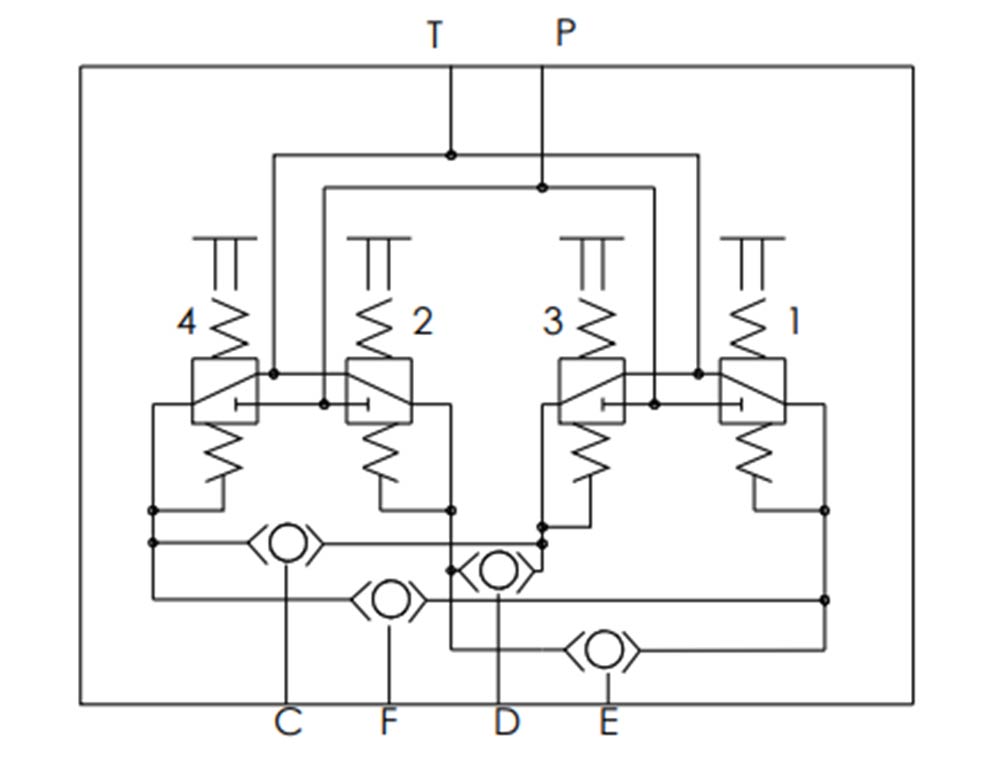

With Shuttle Valve

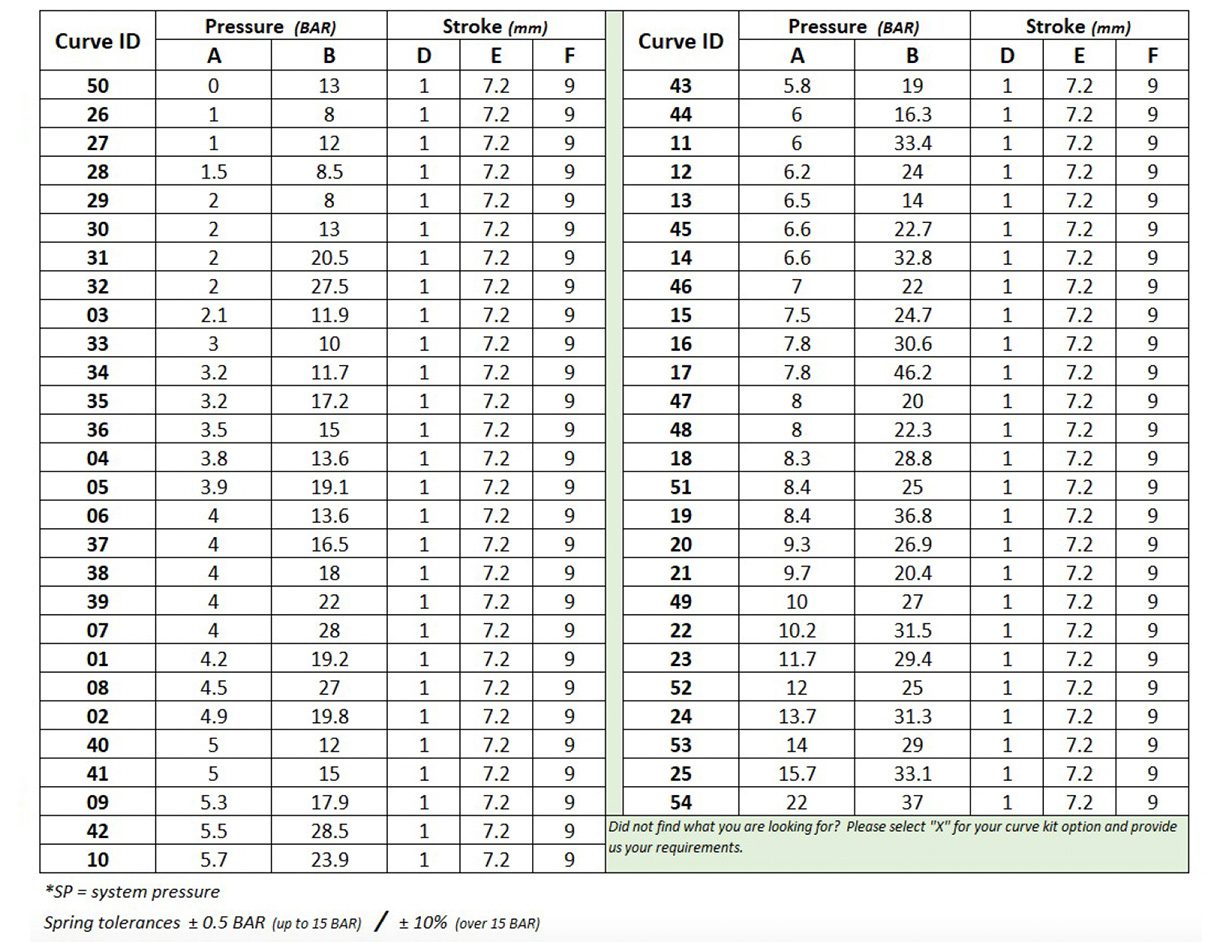

Standard, Jump to Supply

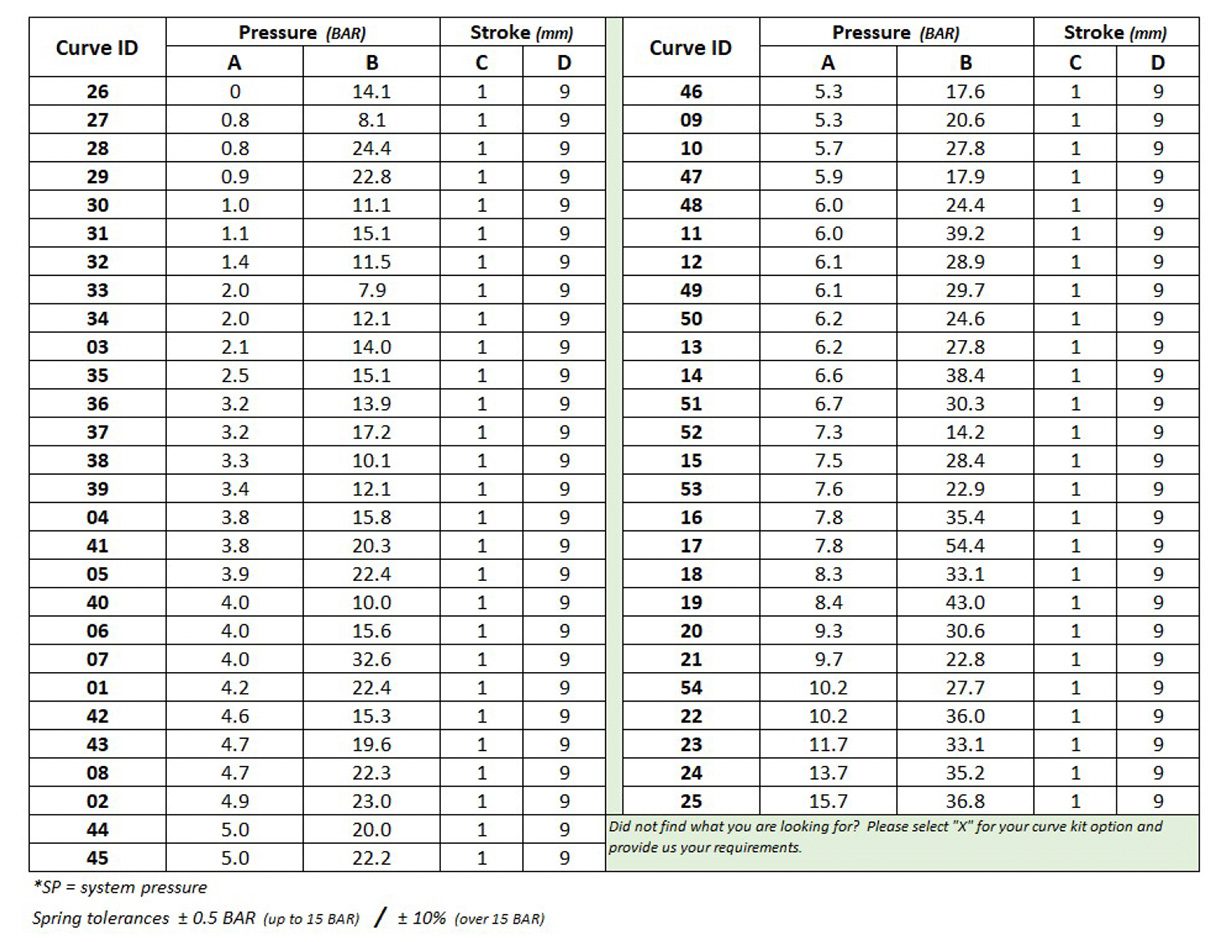

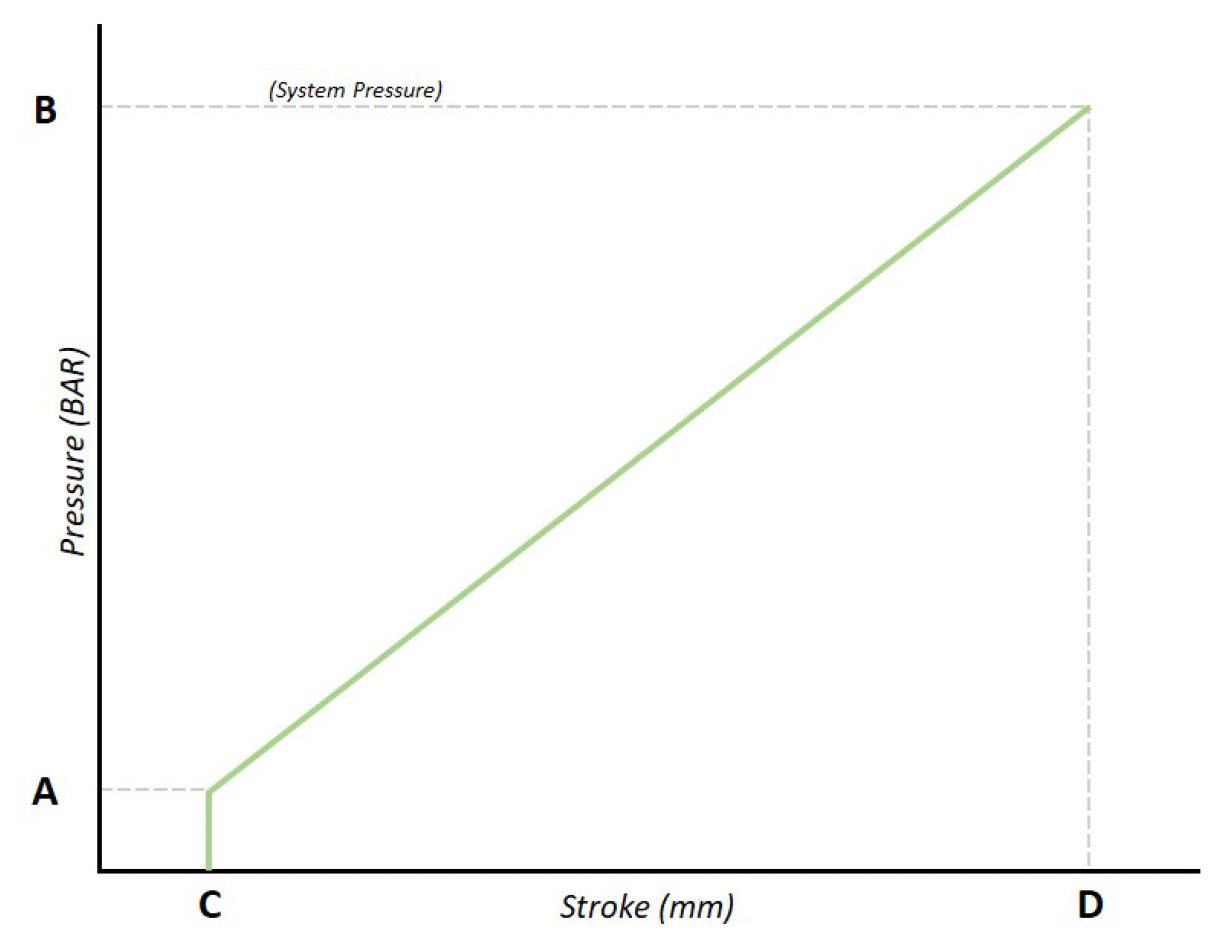

Standard

Bent Curve

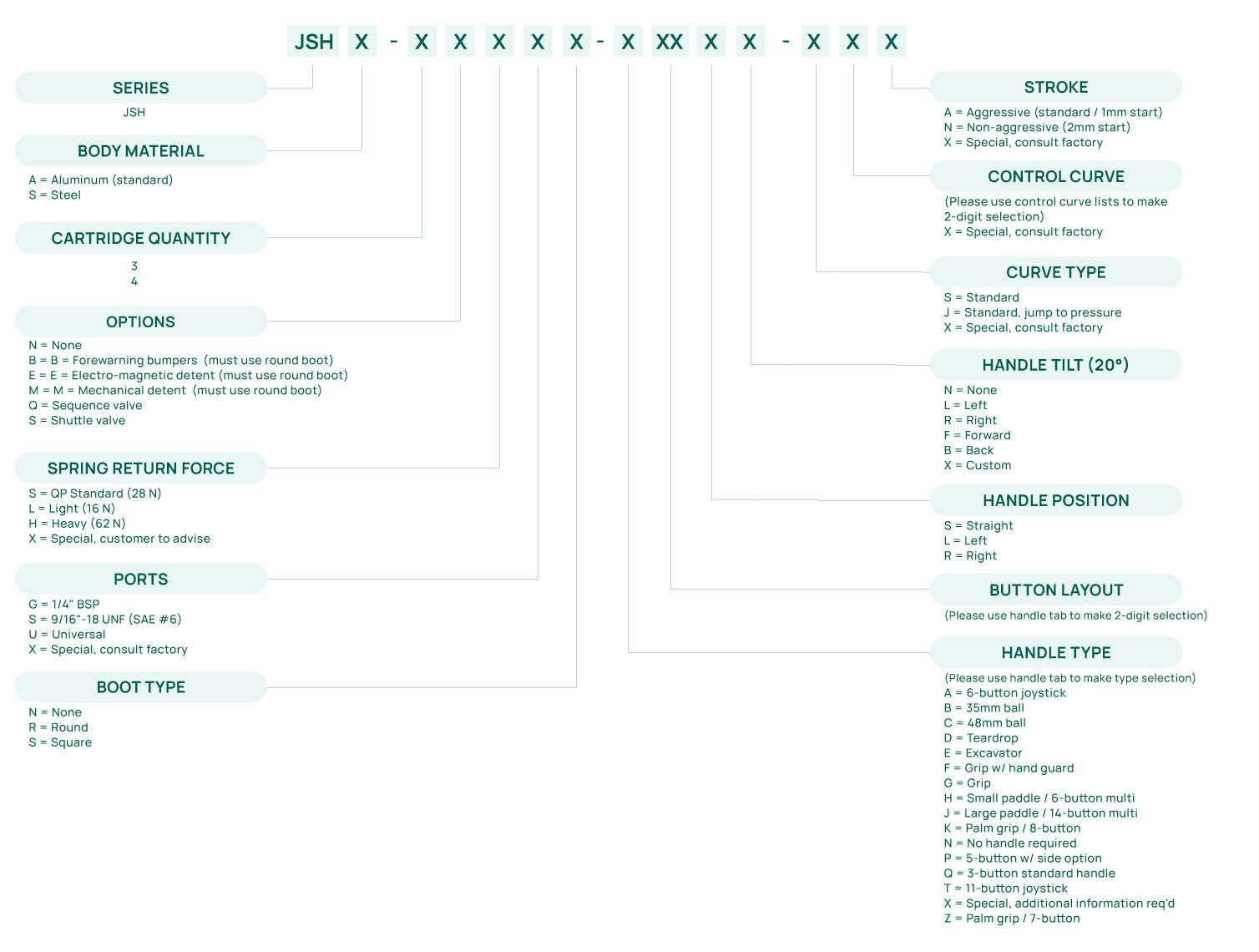

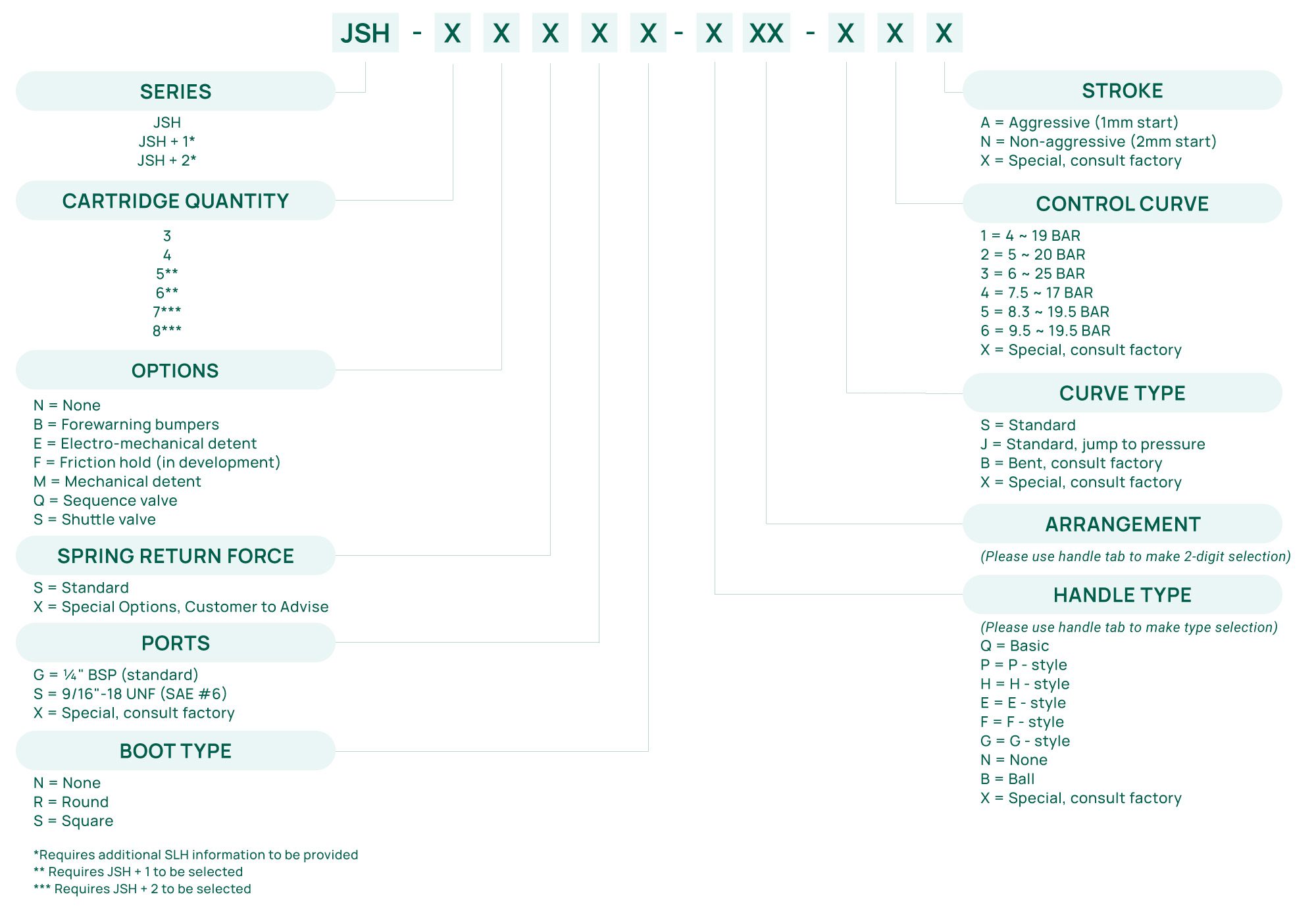

Configure Your Product

Send Your Product Code to QP

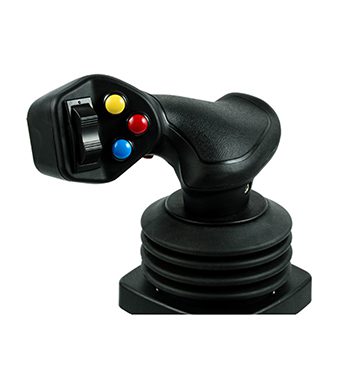

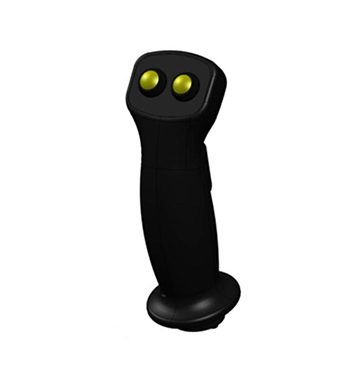

Q-Style Handle

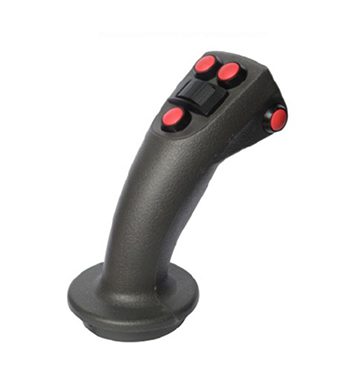

P-Style Handle

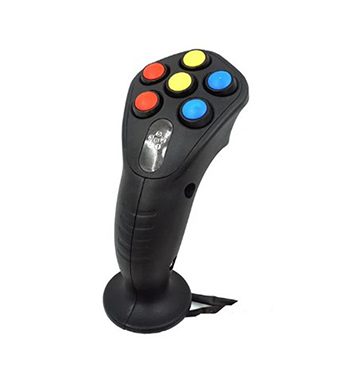

H-Style Handle

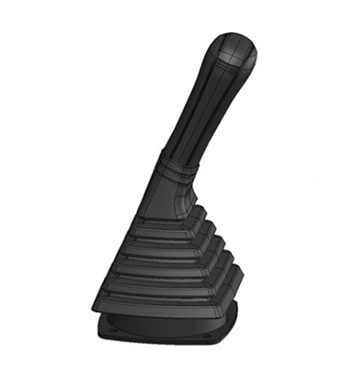

E-Style Handle

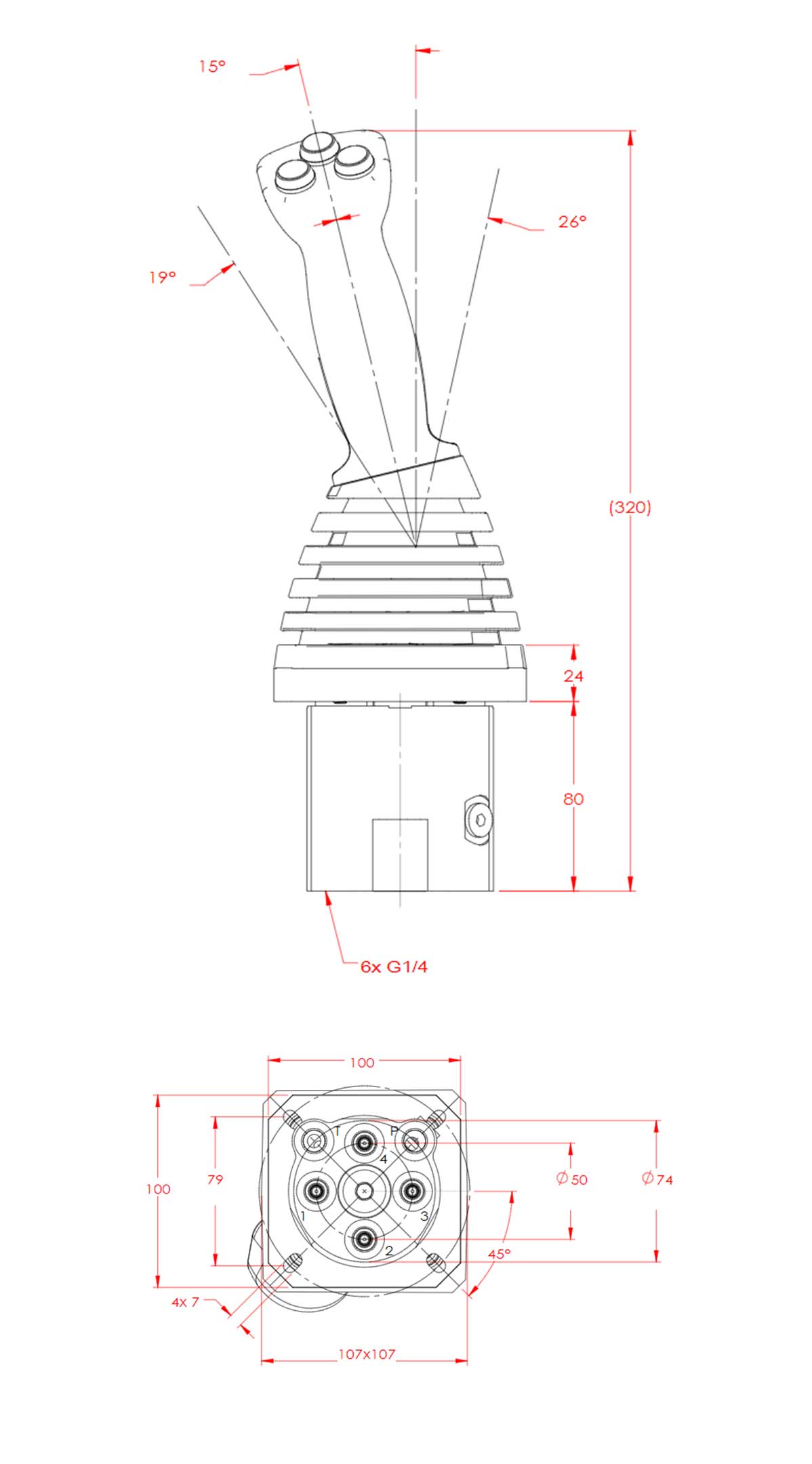

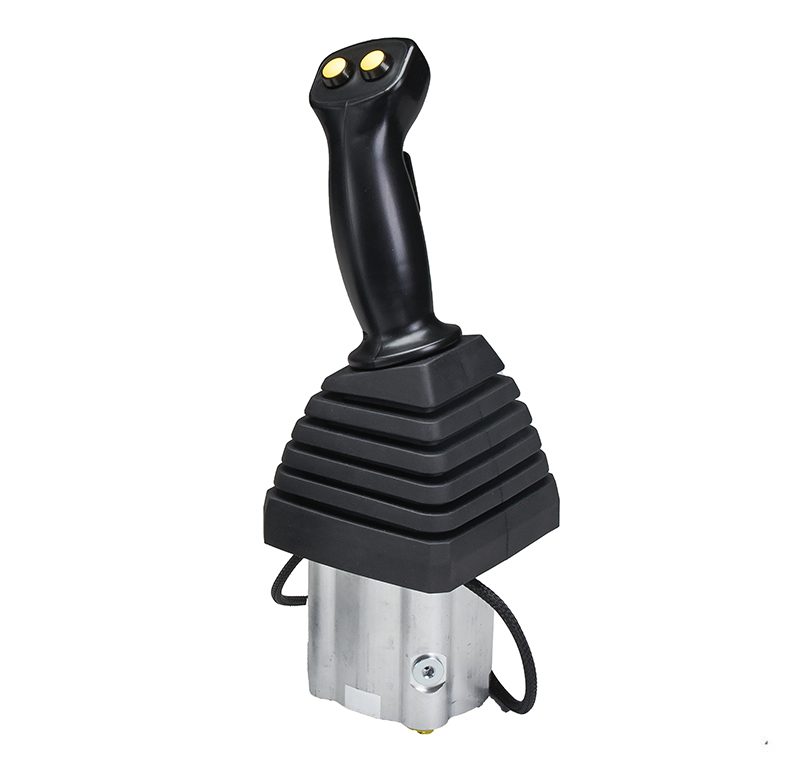

JSH with Q-Style Handle

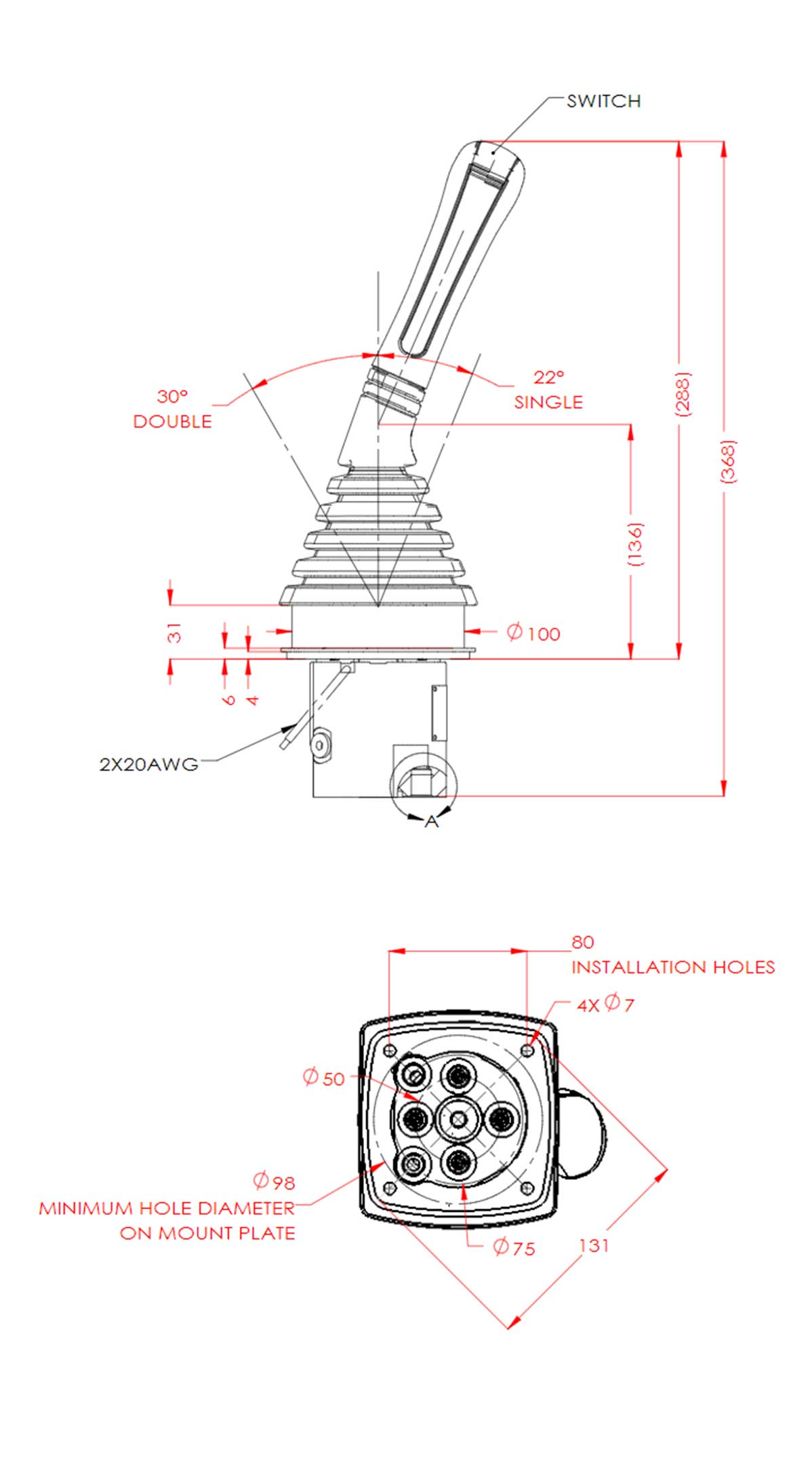

JSH with E-Style Handle
