FP8 Foot Pedals

Our hydraulic foot pedal controls are designed to offer the same benefits to you as our joysticks. Single and dual foot pedals are highly configurable, with numerous curve kits and pedal options. Our foot pedal controls come with either 6mm or 8mm cartridges designed with our step bore technology for quick response and precise control. We offer configurations suitable for both 20 l/m and 30 l/m applications, packaged in a lightweight aluminum body.

Working Pressure: 40 BAR
Max Operating Pressure: 100 BAR
Max Back Pressure: 3 BAR
Max Flow: 30 L/min
Temperature Range: -20 deg C ~ 90 deg C
Fluid Type: Mineral Oil ISO, HM & HV (10W recommended)
Max Install Torque: 390 kgf/cm
Service Ports: G1/4”BSPP & #6 SAE (9/16″-18 UNF)
Body Material: Aluminum

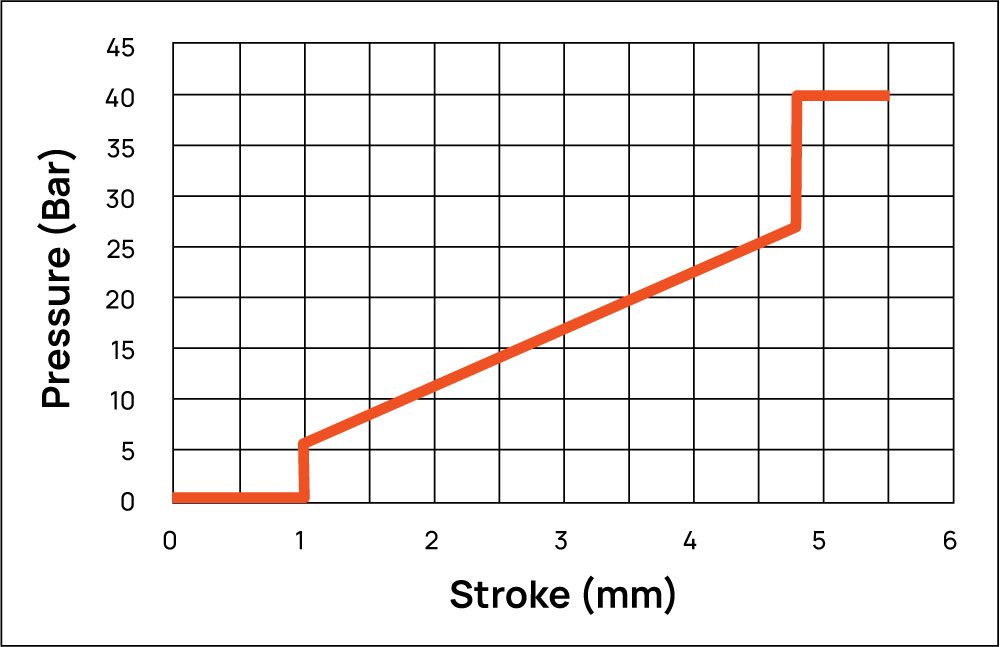

Standard, Jump to Supply

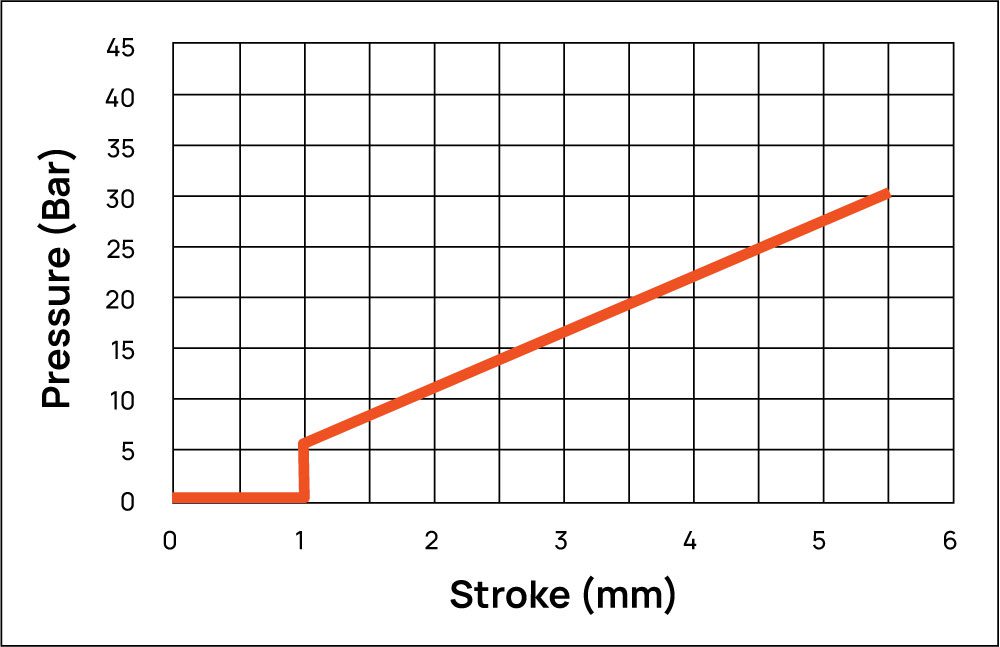

Standard

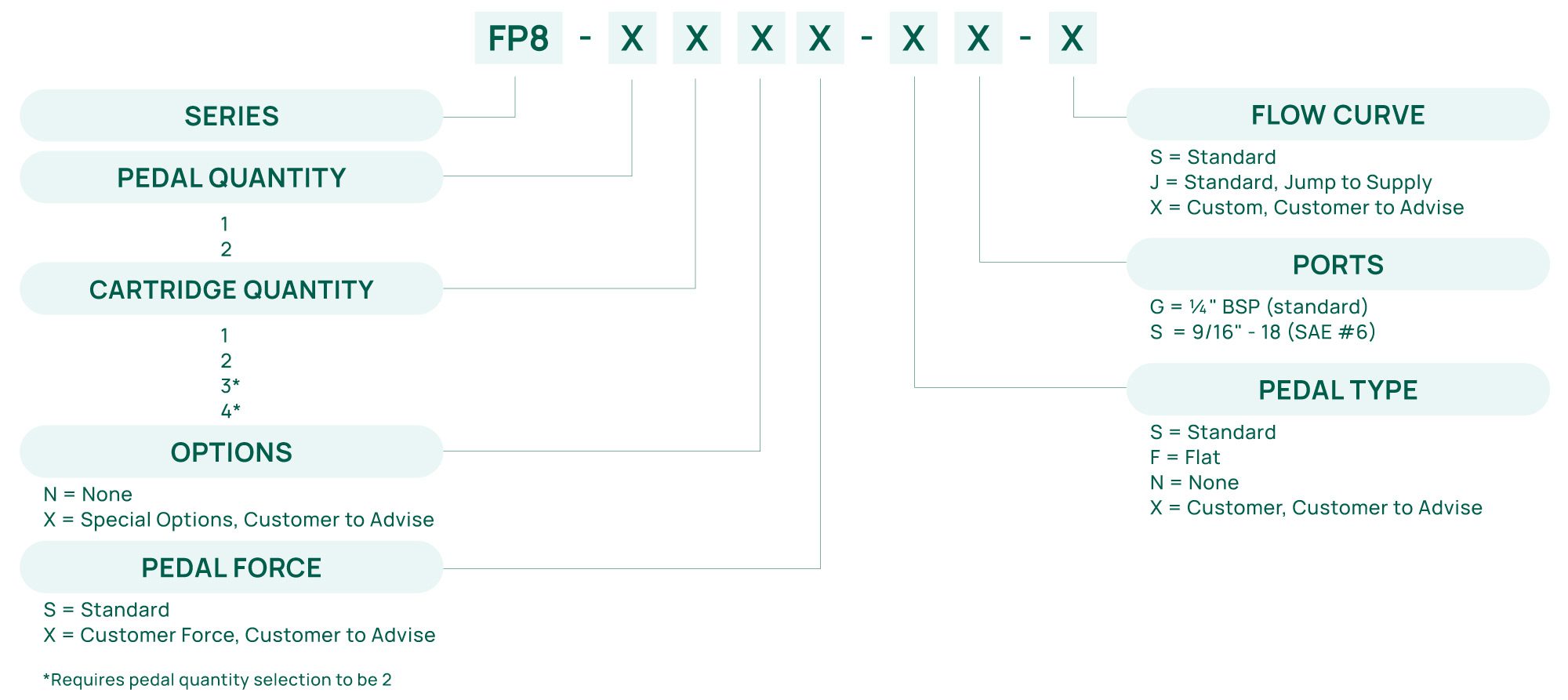

Configure Your Product

Send Your Product Code to QP

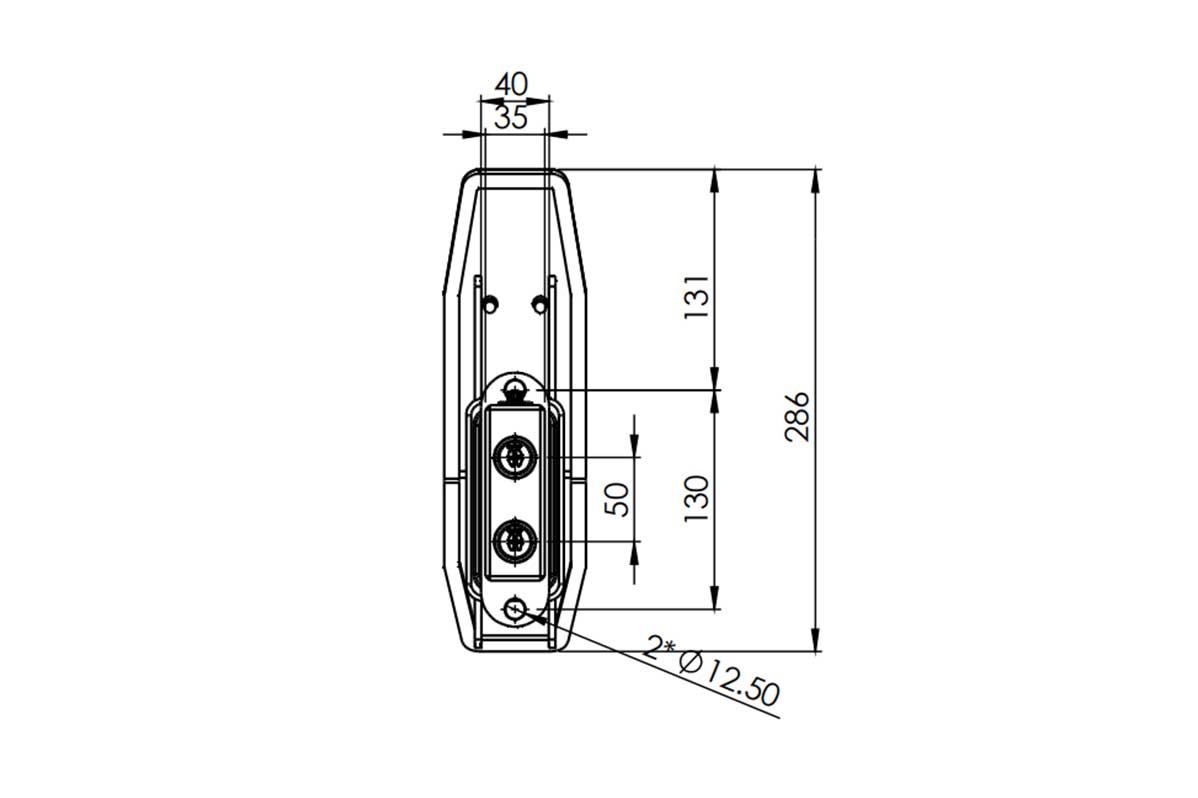

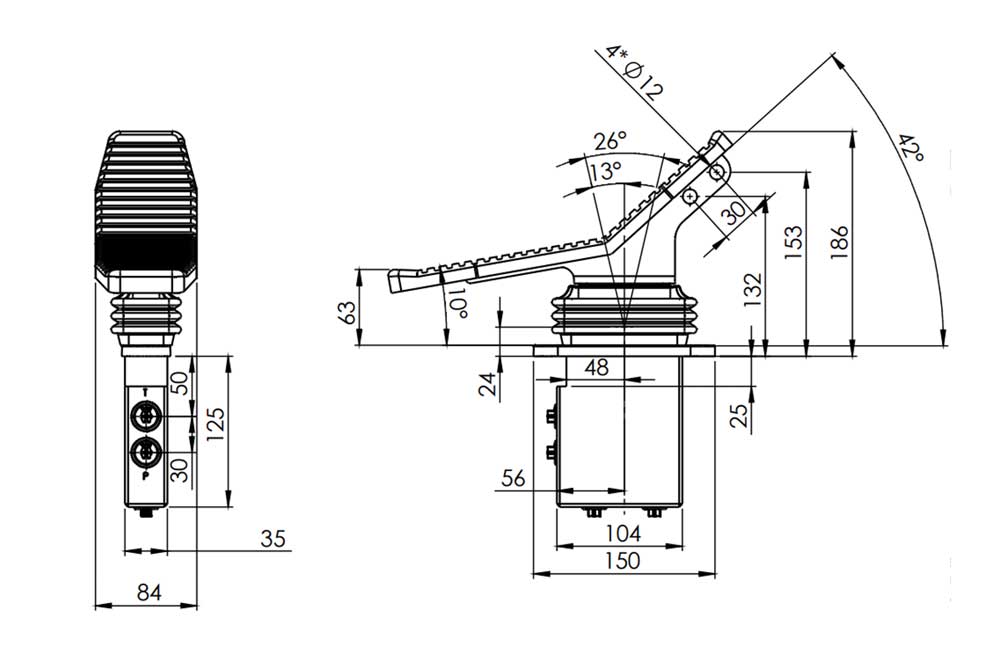

FP8-12

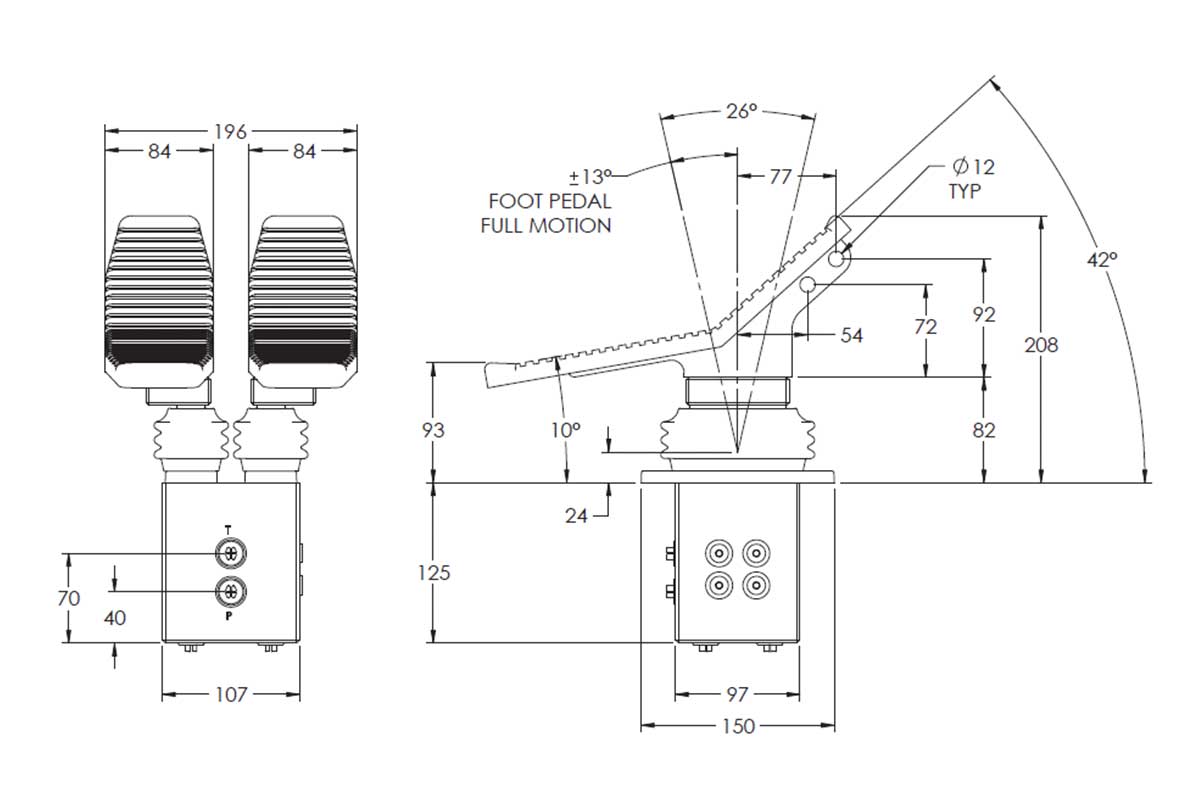

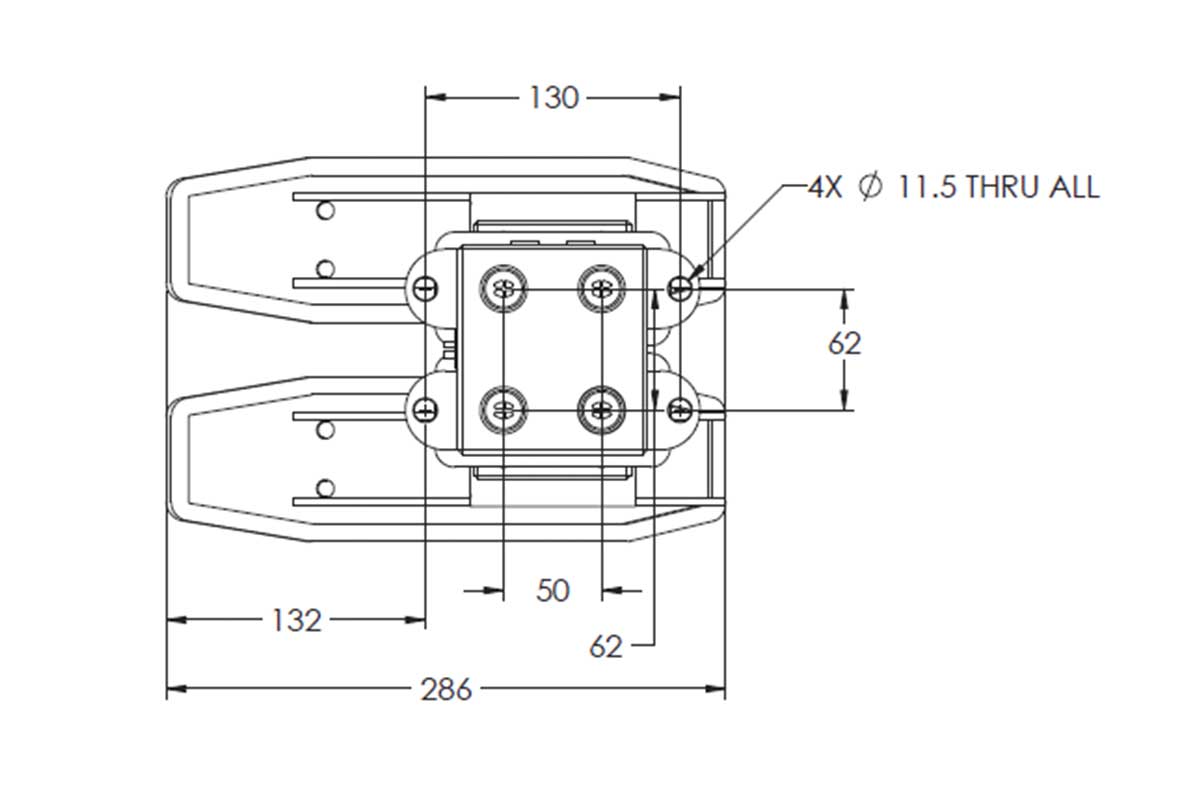

FP8-24

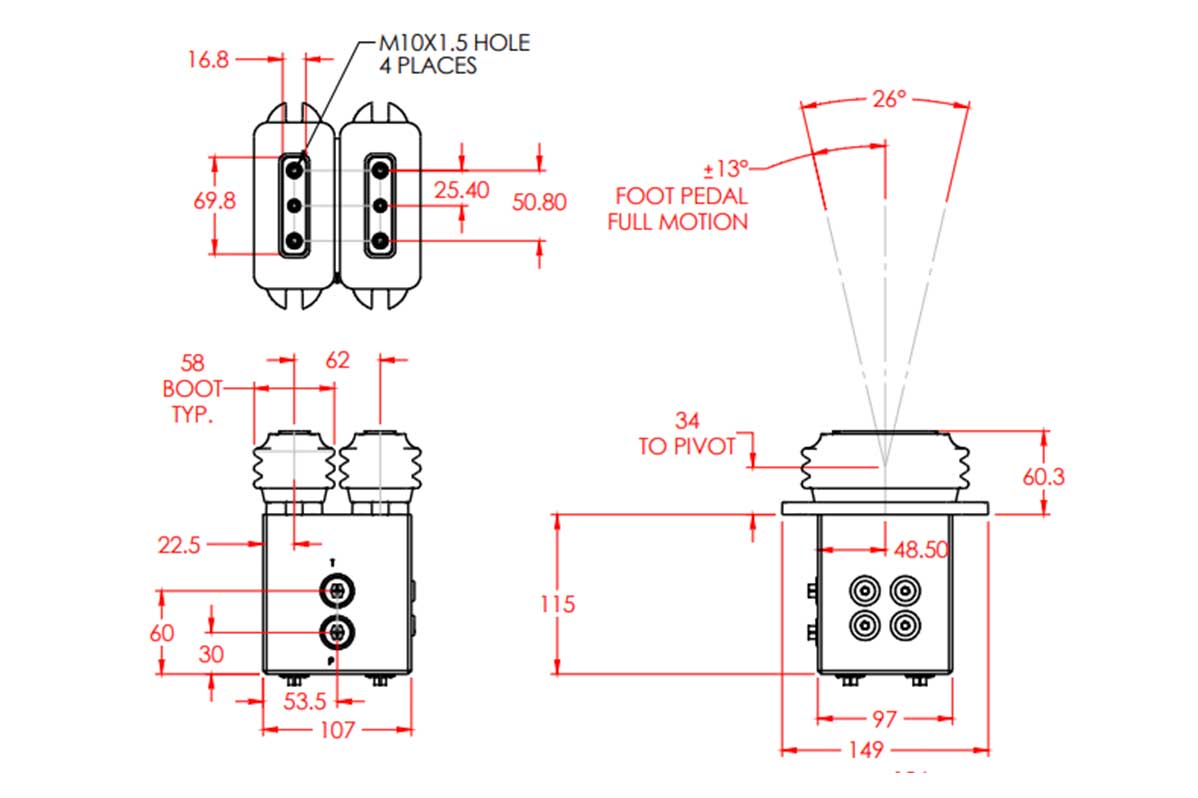

FP8-Base

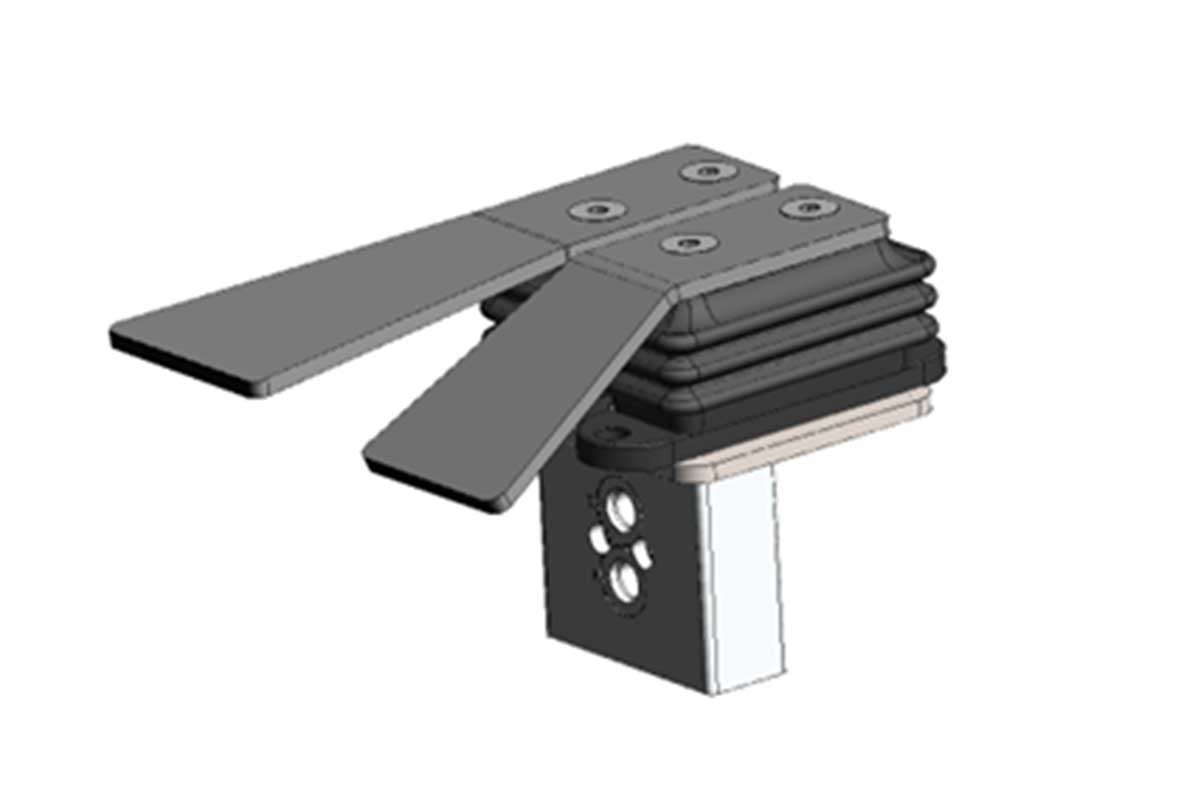

FP6-Dual Pedal / Single Cartridge

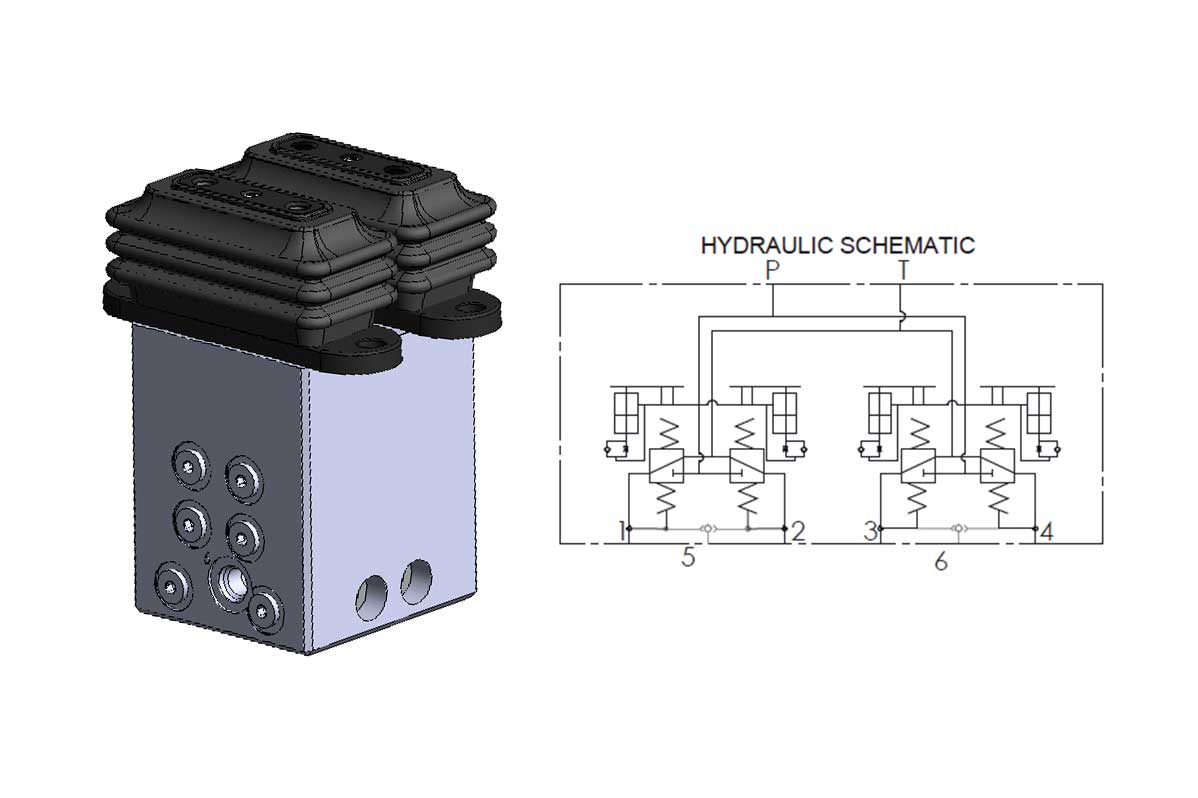

FP8-Dual Pedal w/ Shuttle Valves

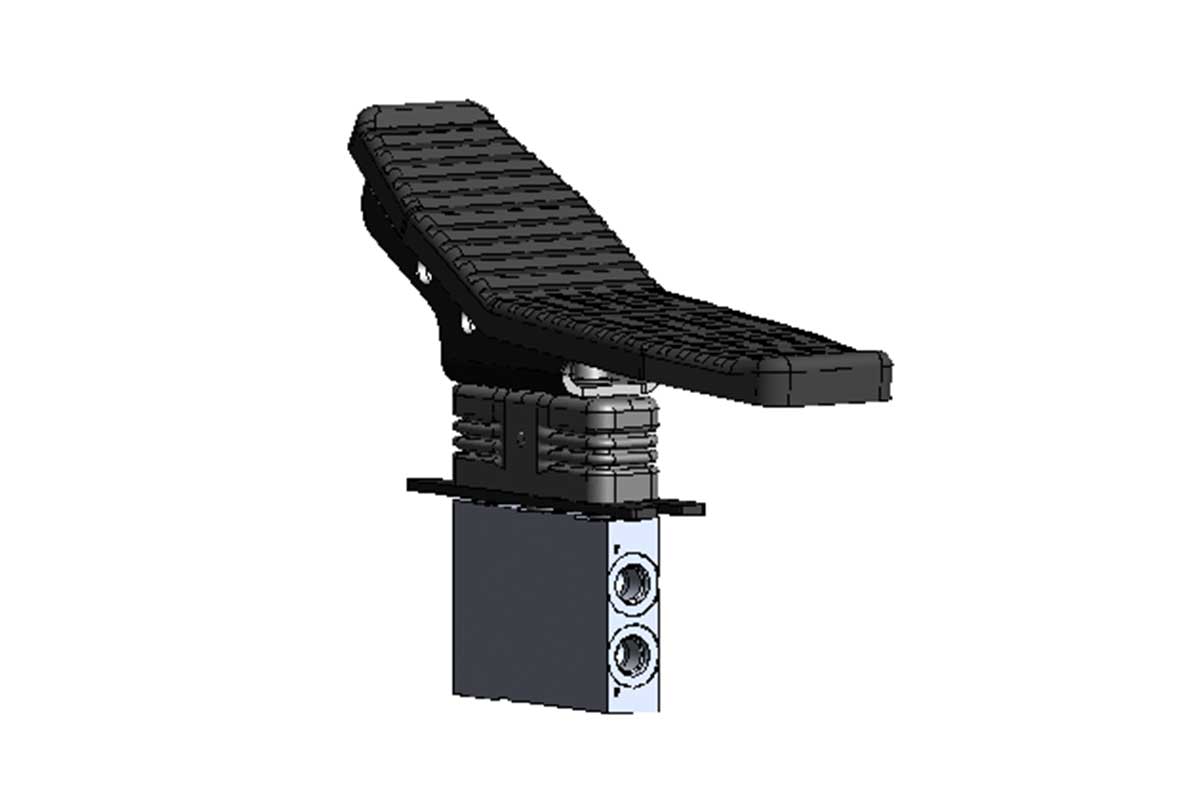

FP6-Single Pedal

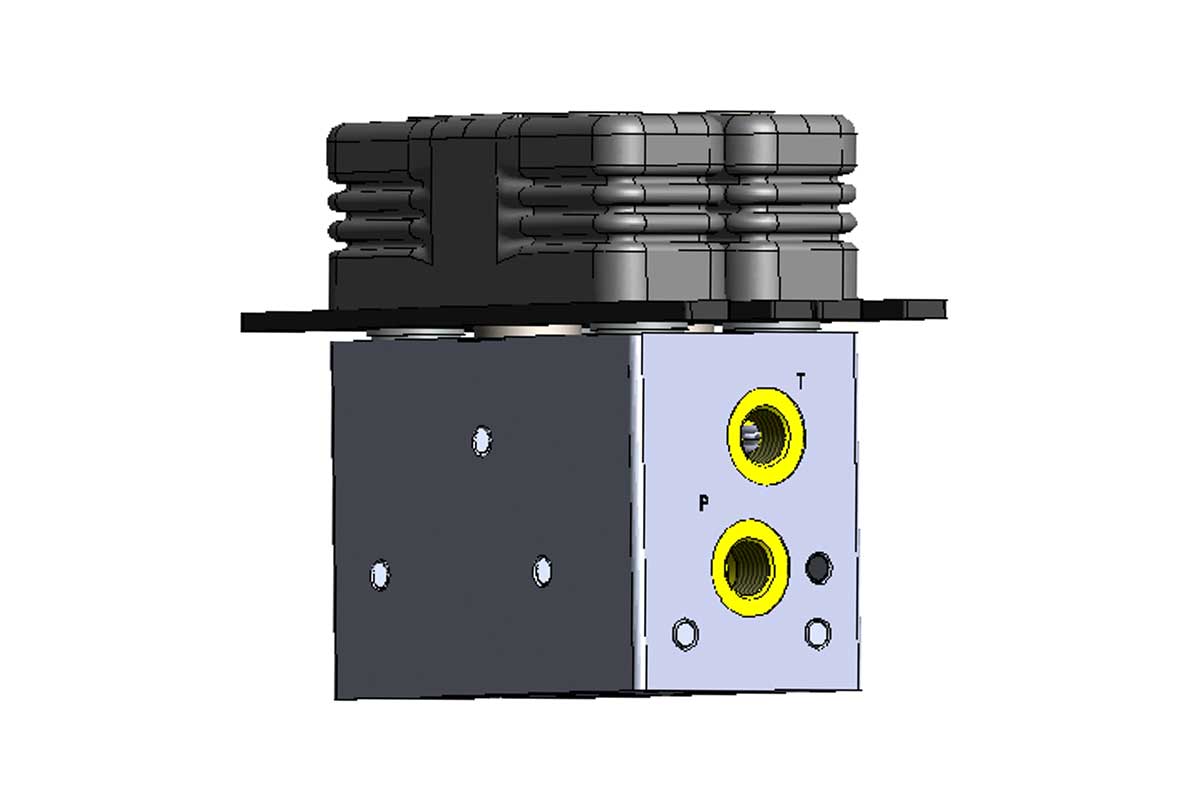

FP6-Dual Pedal
