SLH Hydraulic Joysticks

The SLH is a stackable single axis version of our JSH hydraulic joystick, offering all the advantages of our Step Bore technology. The supply and tank ports are on the front face with control ports on the bottom. The SLH is suitable for a wide variety of applications and machines and is stackable with common supply and tank.

KEY FEATURES/BENEFITS:

  • Low-effort design reduces operator fatigue
  • High response delivers accuracy and control
  • Aluminum body and cartridge design provide lower leakage, lower mass, and better-quality control
  • On-spool dampening for less noise
  • High force (forewarning) bumper
  • Easily configurable to deliver the optimum design for your specific application
  • Standard and custom port sizes

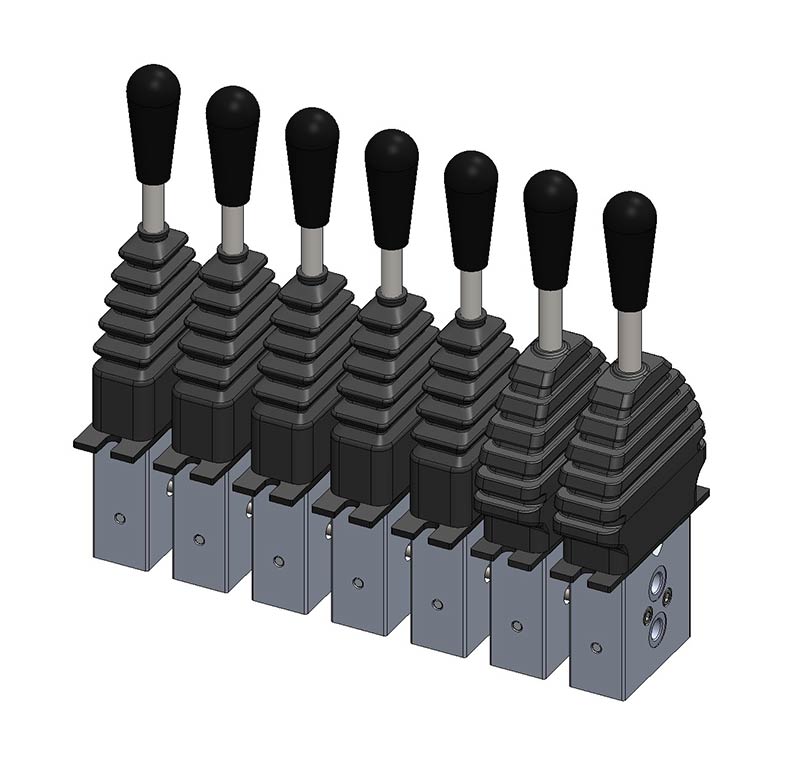

  • Up to 10 bank designs available
Working Pressure: 40 BAR
Max Operating Pressure: 100 BAR
Max Back Pressure: 3 BAR
Max Flow: 25 L/min
Temperature Range: -20 deg C ~ 90 deg C
Fluid Type: Mineral Oil ISO, HM & HV (10W recommended)
Max Install Torque: 390 kgf/cm
Service Ports: G1/4”BSPP & #6 SAE (9/16″-18 UNF)
Body Material: Aluminum

Traditional

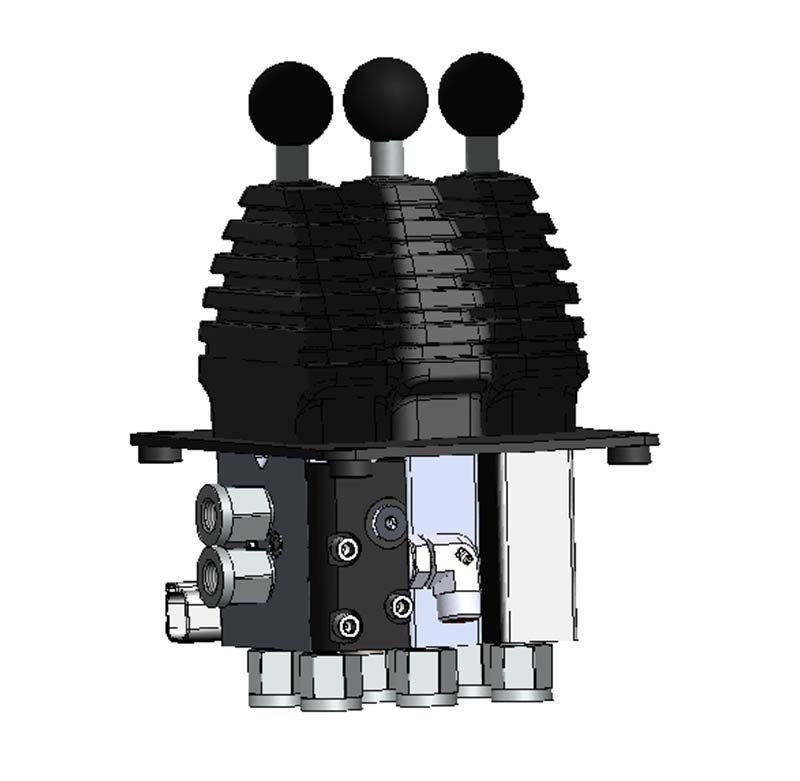

With Sequence Valve

With Forewarning Bumpers & Electro-Magnetic Detents

With Shuttle Valve

Standard, Jump to Supply

Standard

Bent Curve

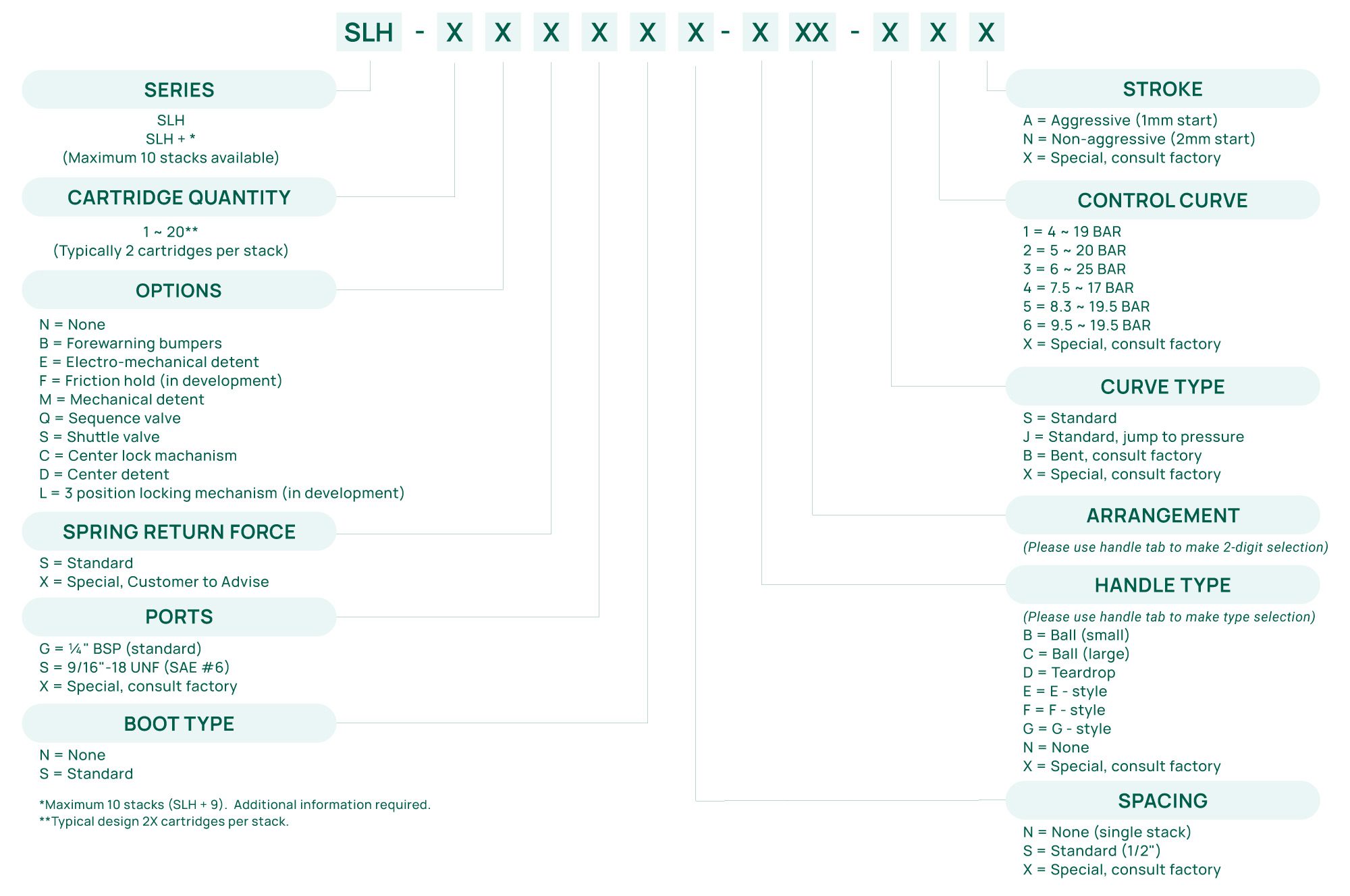

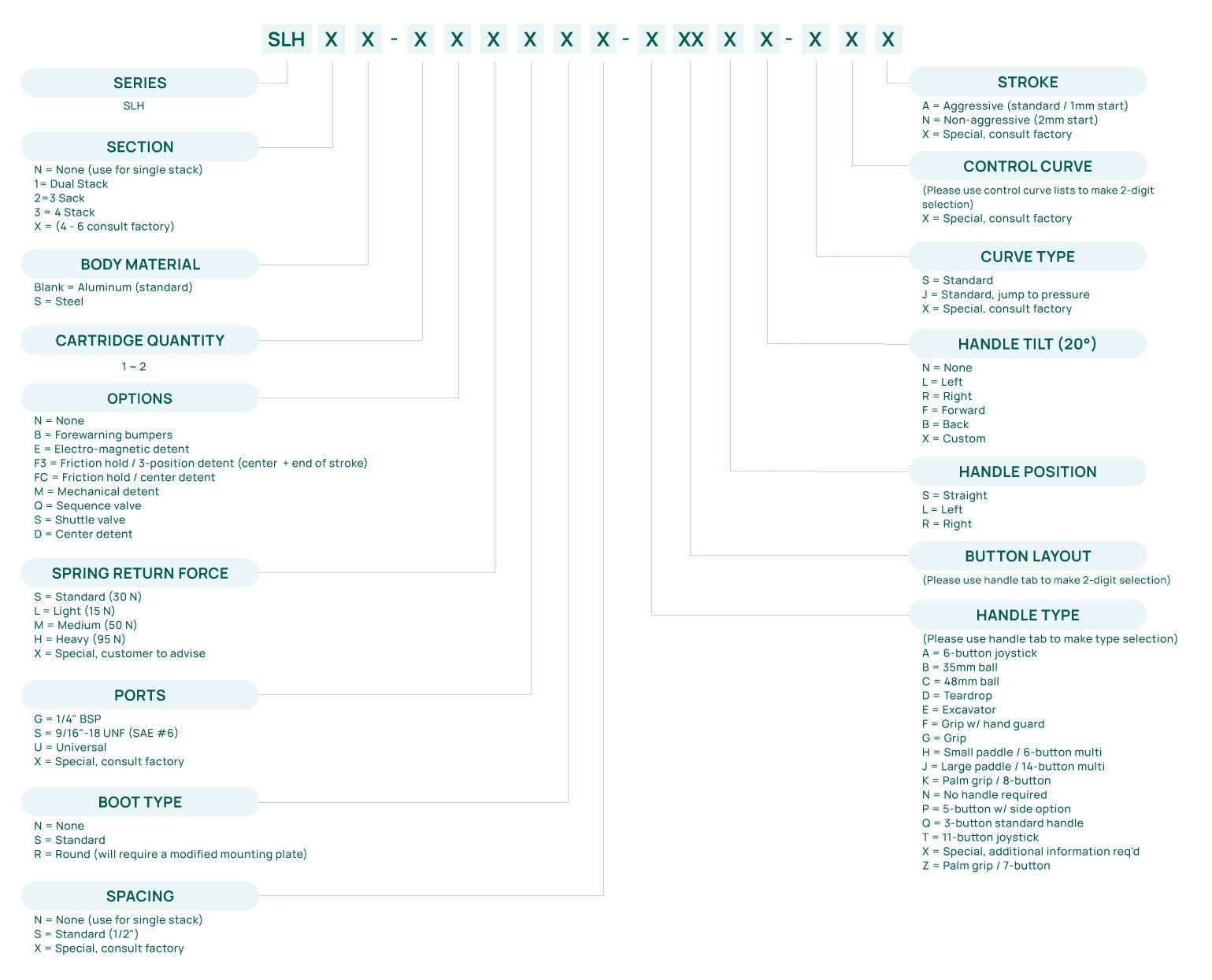

Configure Your Product

Send Your Product Code to QP

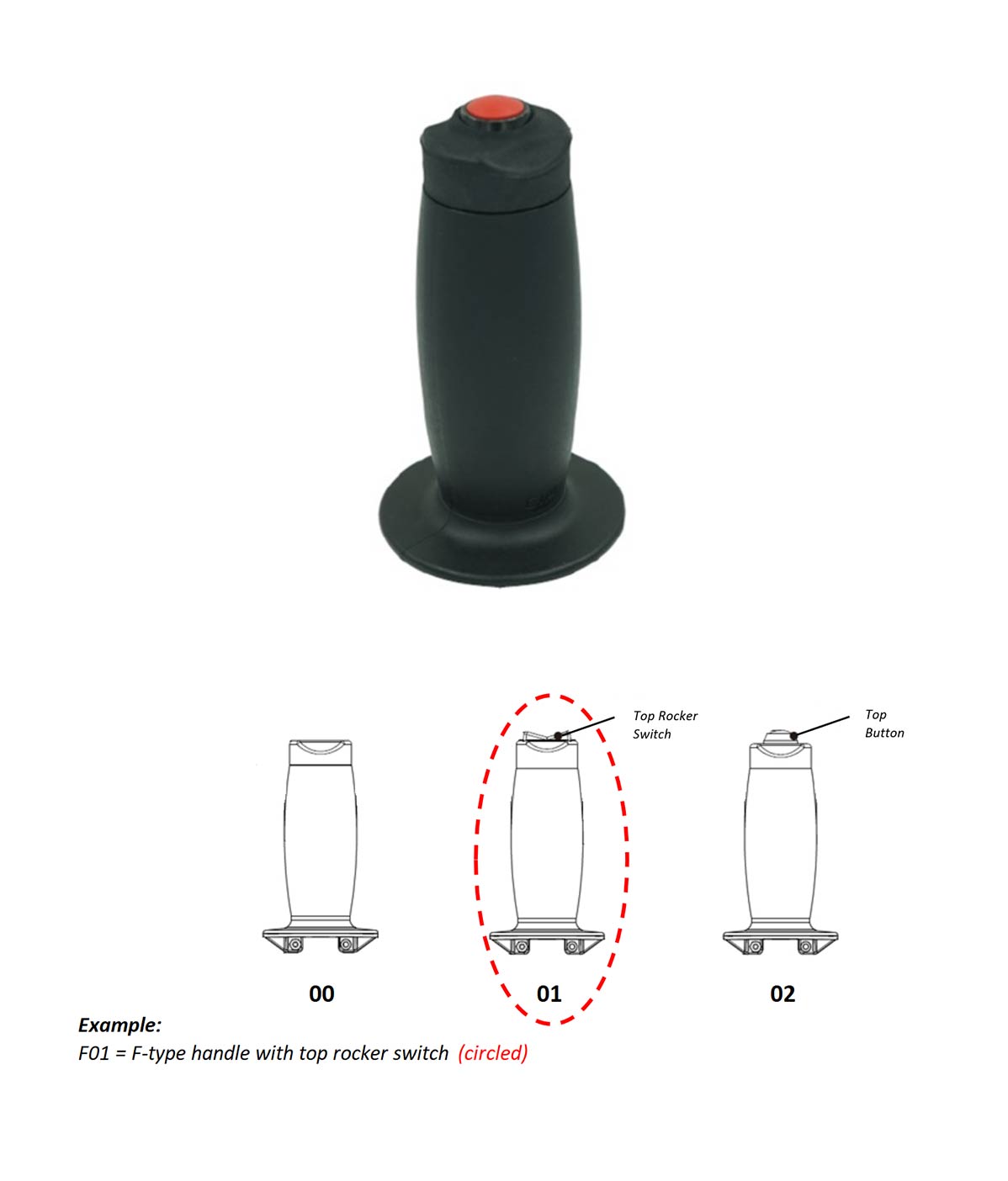

F-Style Handle

G-Style Handle

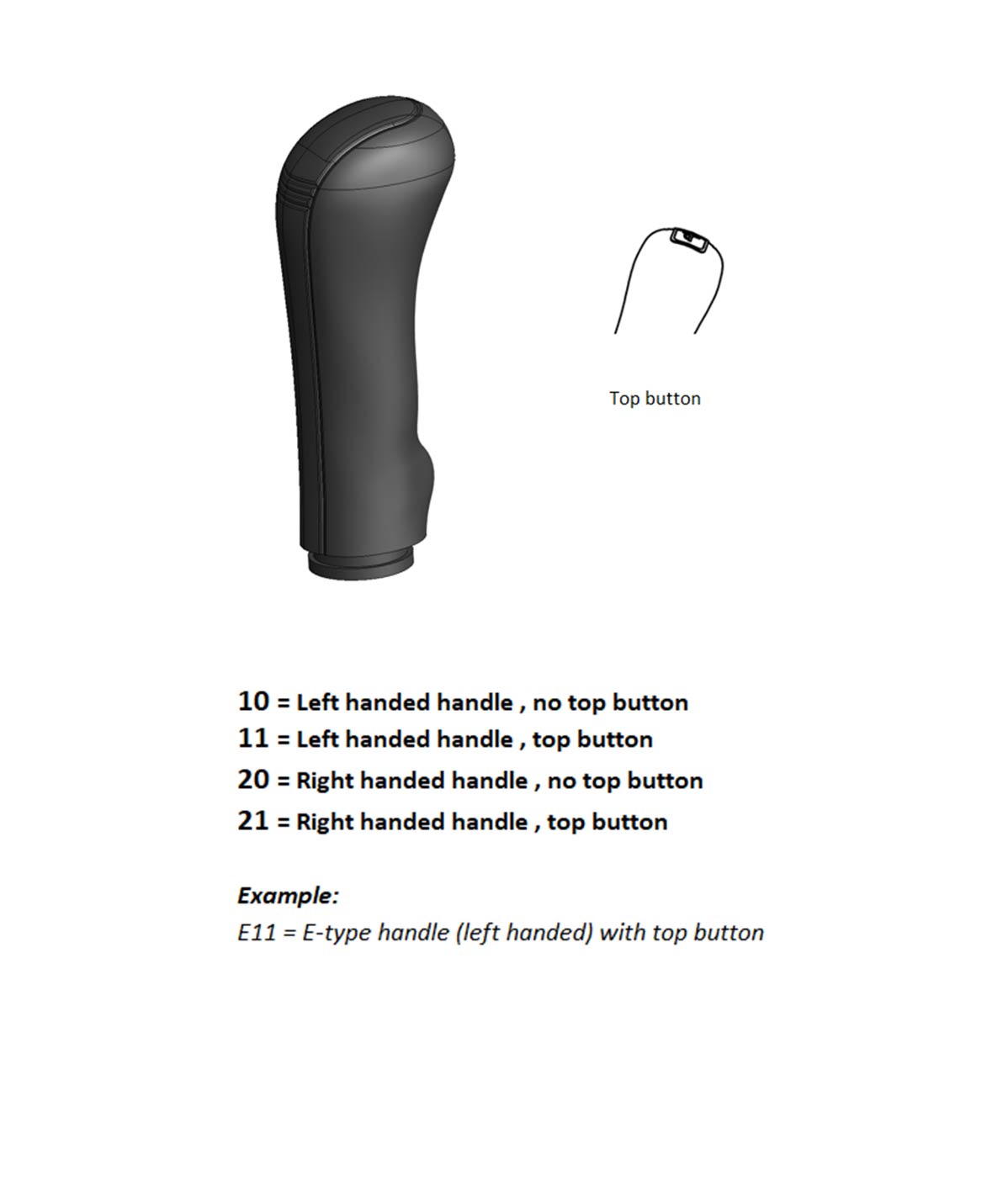

E-Type Handle

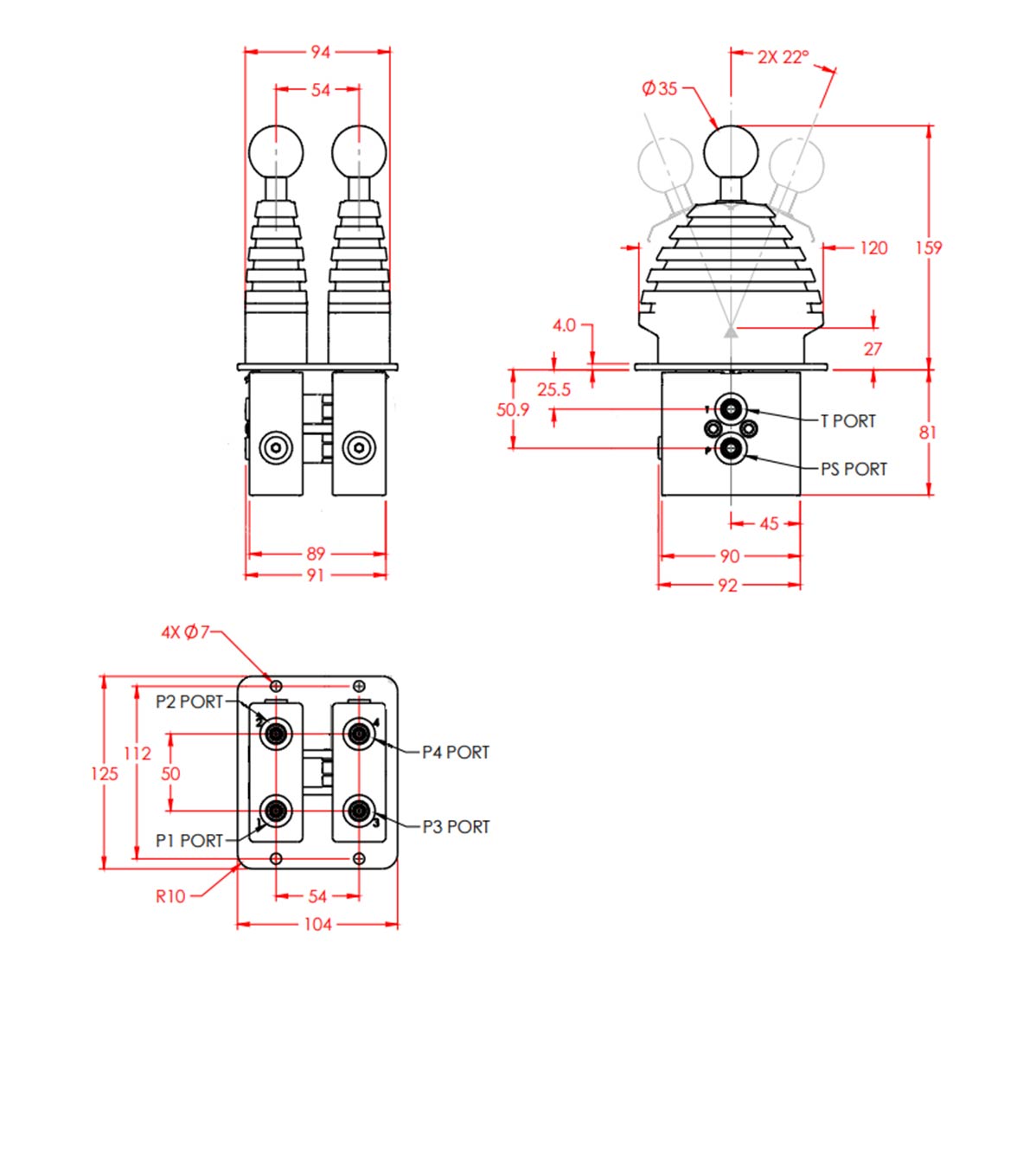

SLH +1

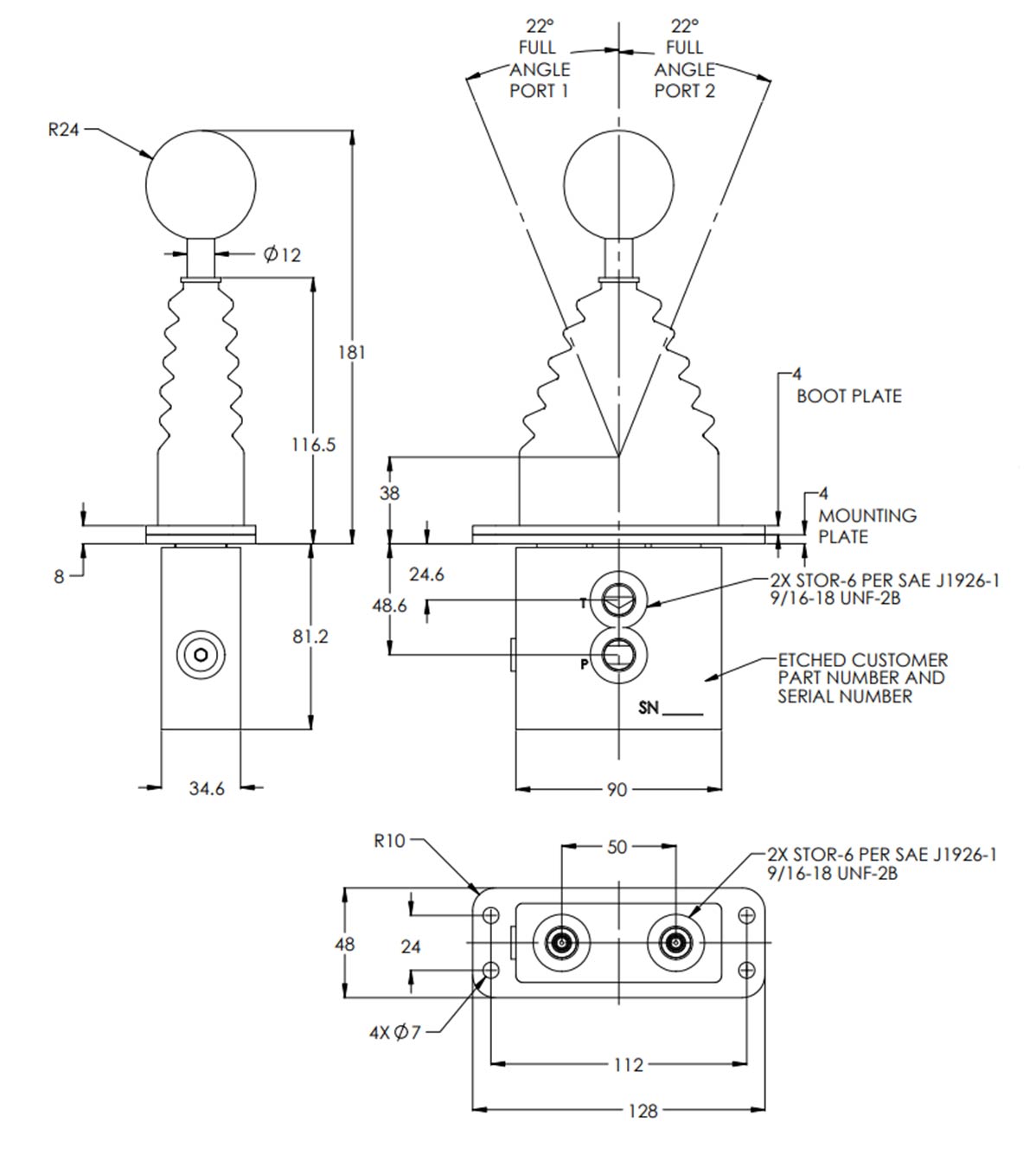

SLH Single Stack with C-Style Handle
