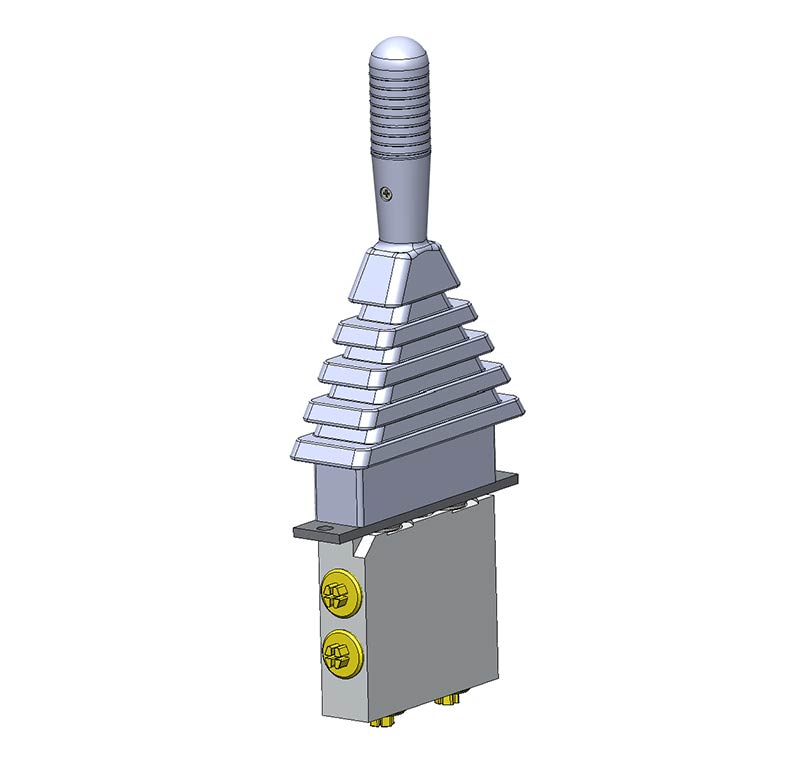

SLT Hydraulic Joysticks

The SLT is a thin (22mm) single lever version of our SLH hydraulic joystick, offering all the advantages of our Step Bore technology. The SLT is often used on Excavators for an attachment blade control but is suitable for many other applications as well. Supply and tank ports are on one side and control ports on the bottom. The SLT comes with a handle and can also come with a top button (momentary).

KEY FEATURES/BENEFITS:

  • Low-effort design reduces operator fatigue
  • High response delivers accuracy and control
  • Aluminum body and cartridge design provide lower leakage, lower mass, and better-quality control
  • On-spool dampening for less noise
  • Easily configurable to deliver the optimum design for your specific application
  • Standard and custom port sizes
Working Pressure: 40 BAR
Max Operating Pressure: 100 BAR
Max Back Pressure: 3 BAR
Max Flow: 15 L/min
Temperature Range: -20 deg C ~ 90 deg C
Fluid Type: Mineral Oil ISO, HM & HV (10W recommended)
Max Install Torque: 390 kgf/cm
Service Ports: G1/4”BSPP & #6 SAE (9/16″-18 UNF)
Body Material: Aluminum

Traditional

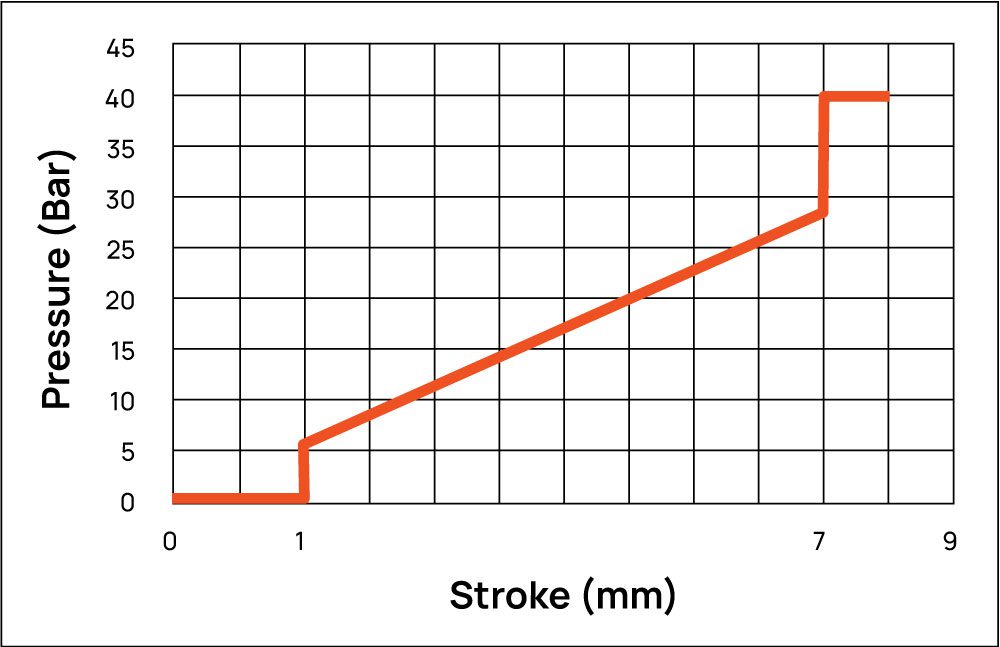

Standard, Jump to Supply

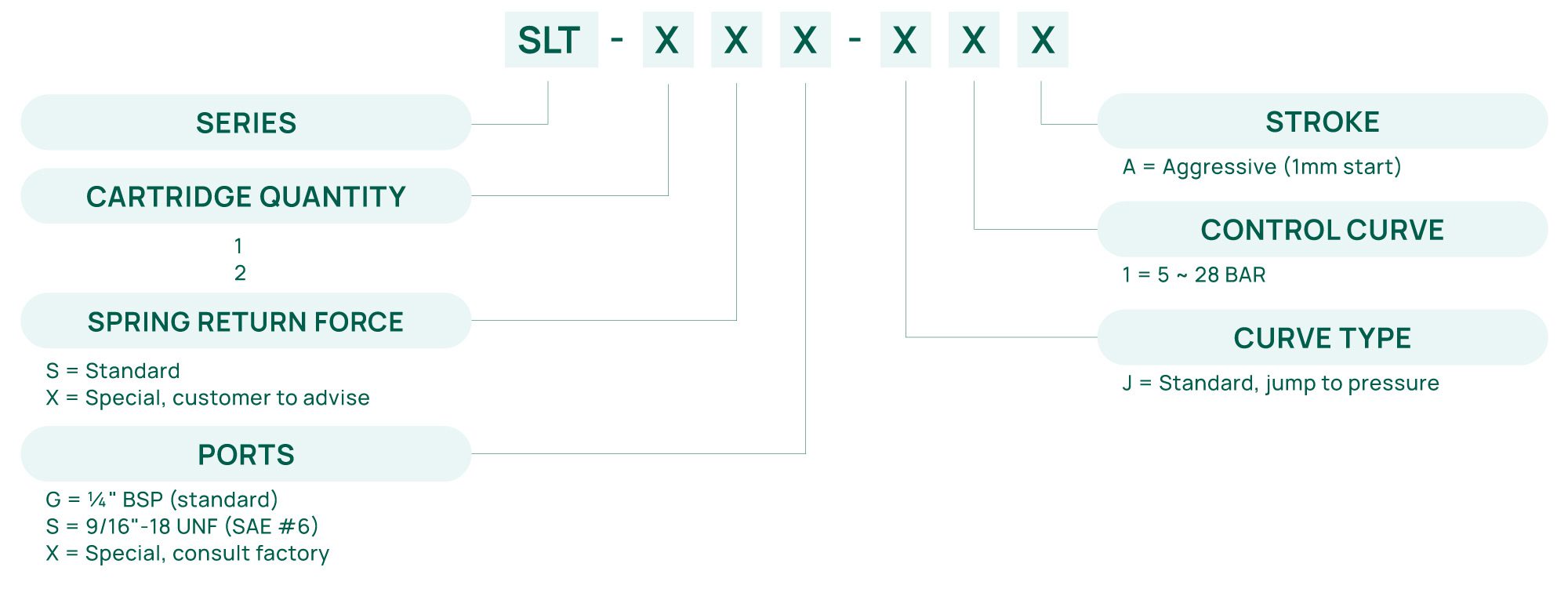

Configure Your Product

Send Your Product Code to QP

SLT Single Stack
