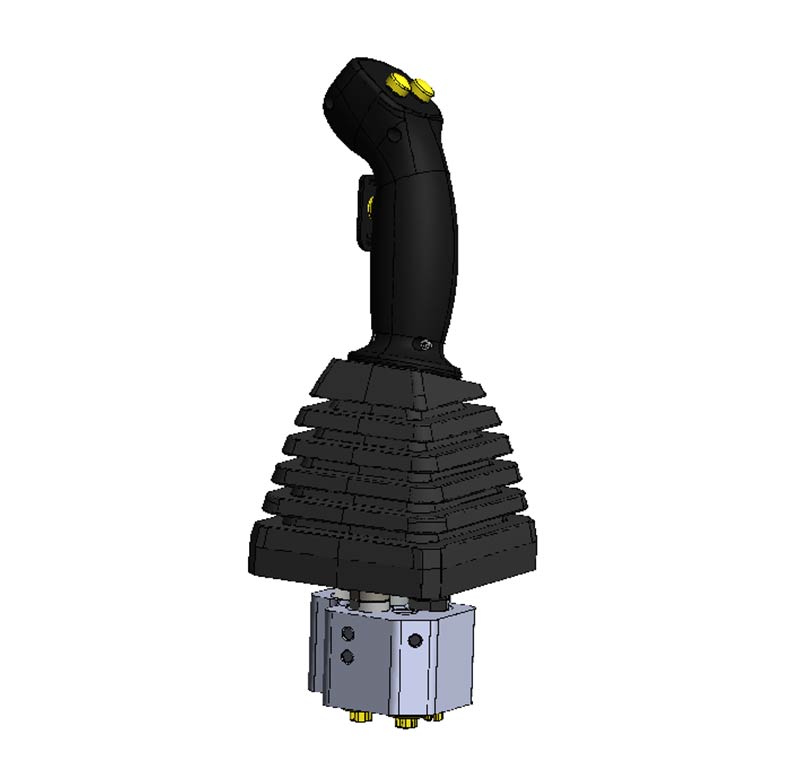

JSC 2-Button
JSC with Excavator Handle
JSC Hydraulic Joysticks
All the benefits of our JSH but in a smaller, more compact package. Our JSC joysticks provide up to 15 lpm flow with up to 50% less effort than conventional pilot valves, while maintaining precision hysteresis below 1%.
KEY FEATURES/BENEFITS:
- Compact design for lower space claims in machine cabs
- Low-effort design reduces operator fatigue
- High response delivers accuracy and control
- Aluminum body and cartridge design provide lower leakage, lower mass, and better-quality control
- On-spool dampening for less noise
- Easily configurable to deliver the optimum design for your specific application
- Standard and custom port sizes
- Multiple handle options and configurations
| Working Pressure: | 40 BAR |
| Max Operating Pressure: | 100 BAR |
| Max Back Pressure: | 3 BAR |
| Max Flow: | 15 L/min |
| Temperature Range: | -20 deg C ~ 90 deg C |
| Fluid Type: | Mineral Oil ISO, HM & HV (10W recommended) |
| Max Install Torque: | 390 kgf/cm |
| Service Ports: | G1/4”BSPP & #6 SAE (9/16″-18 UNF) |
| Body Material: | Aluminum |
Traditional |
With Sequence Valve |
|---|---|
 |
 |
With Forewarning Bumpers & Electro-Magnetic Detents |
With Shuttle Valve |
|---|---|
 |
 |
Standard, Jump to Supply |
Standard |
|---|---|
 |
 |

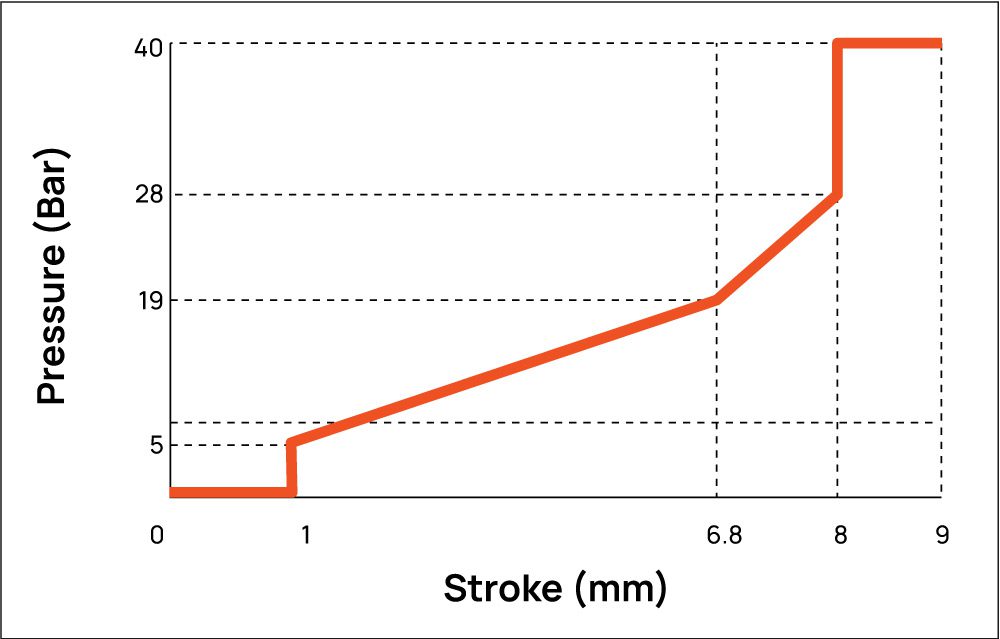

Bent Curve

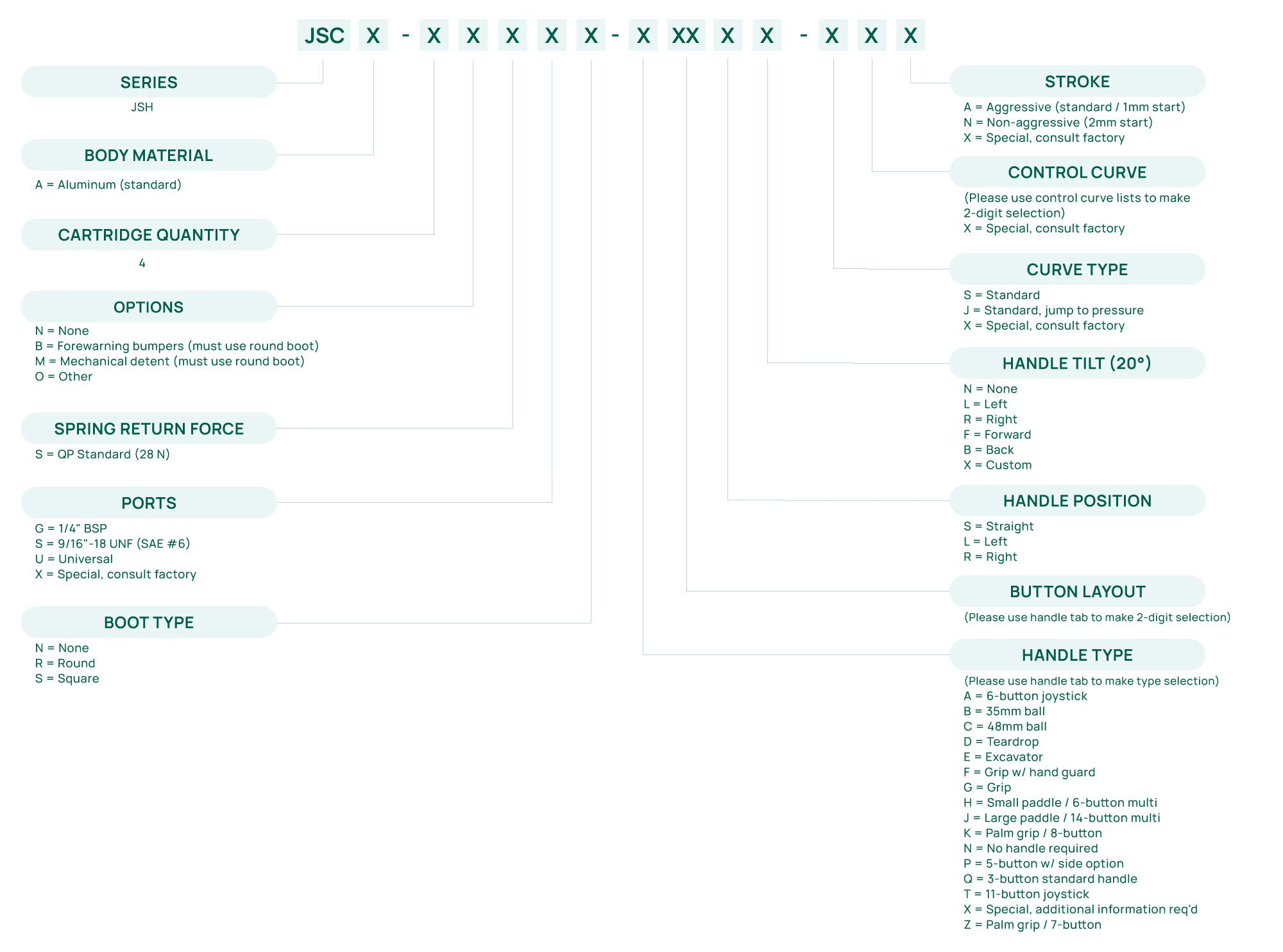

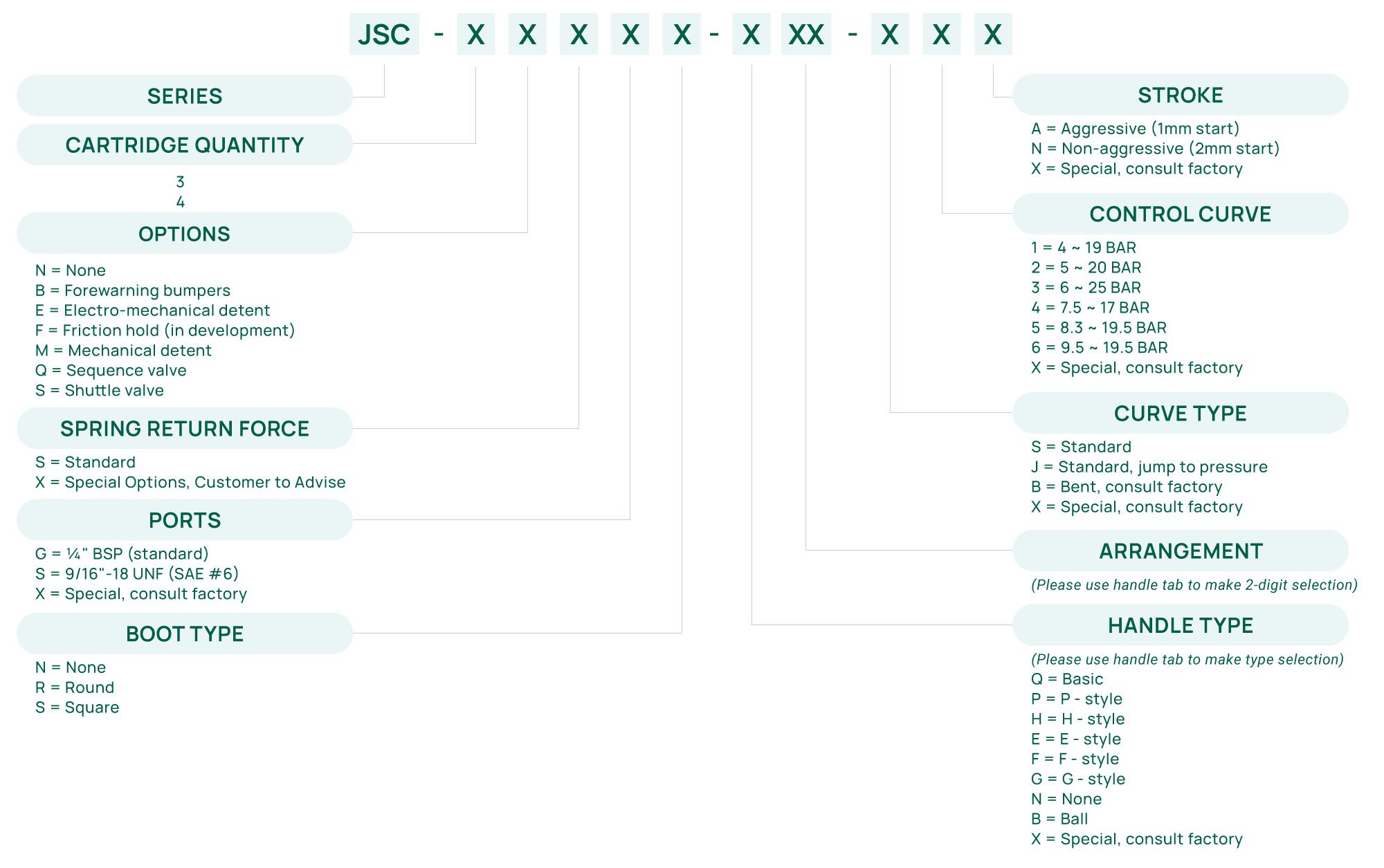

Configure Your Product
Send Your Product Code to QP

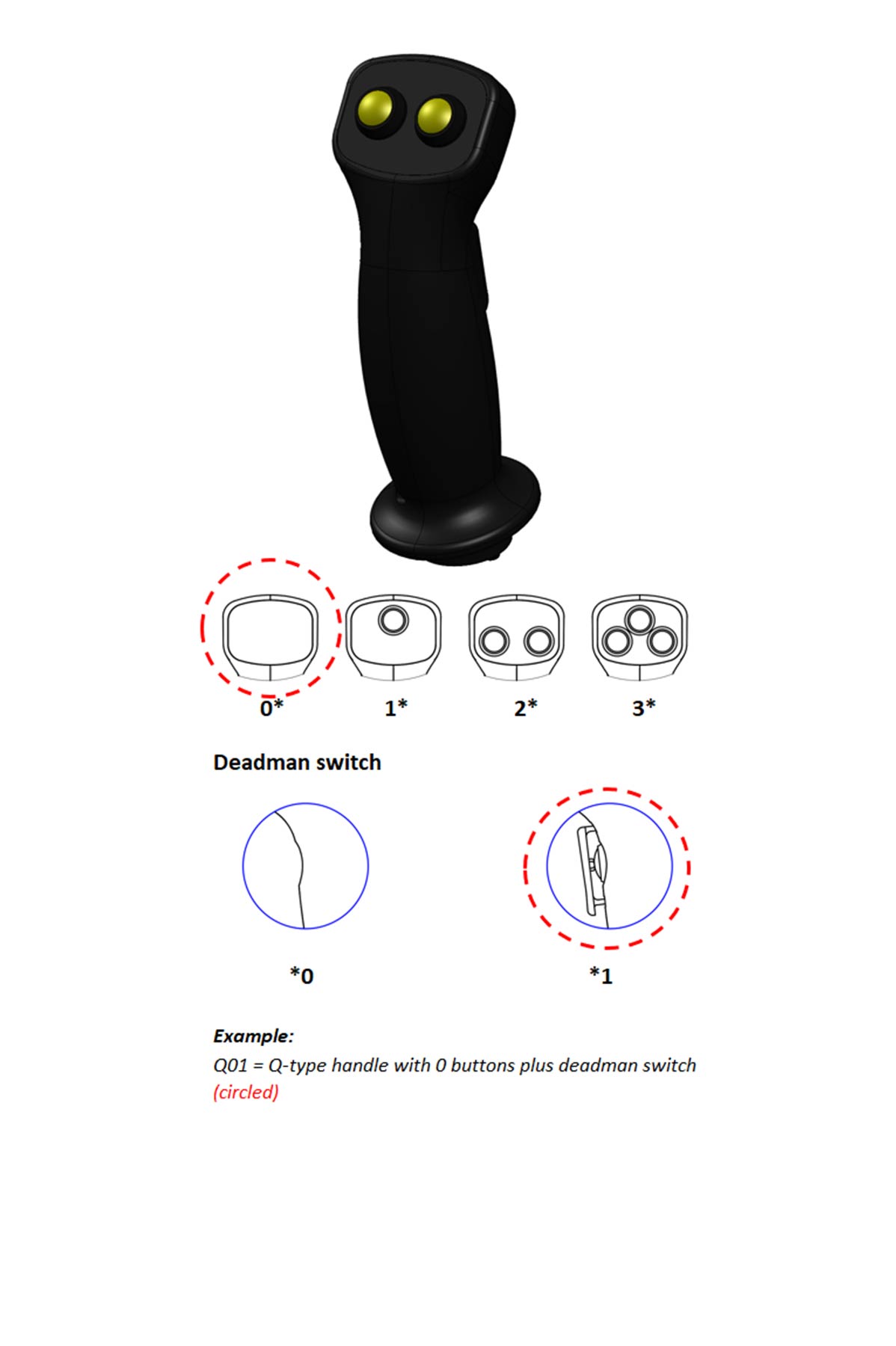

Q-Style Handle |

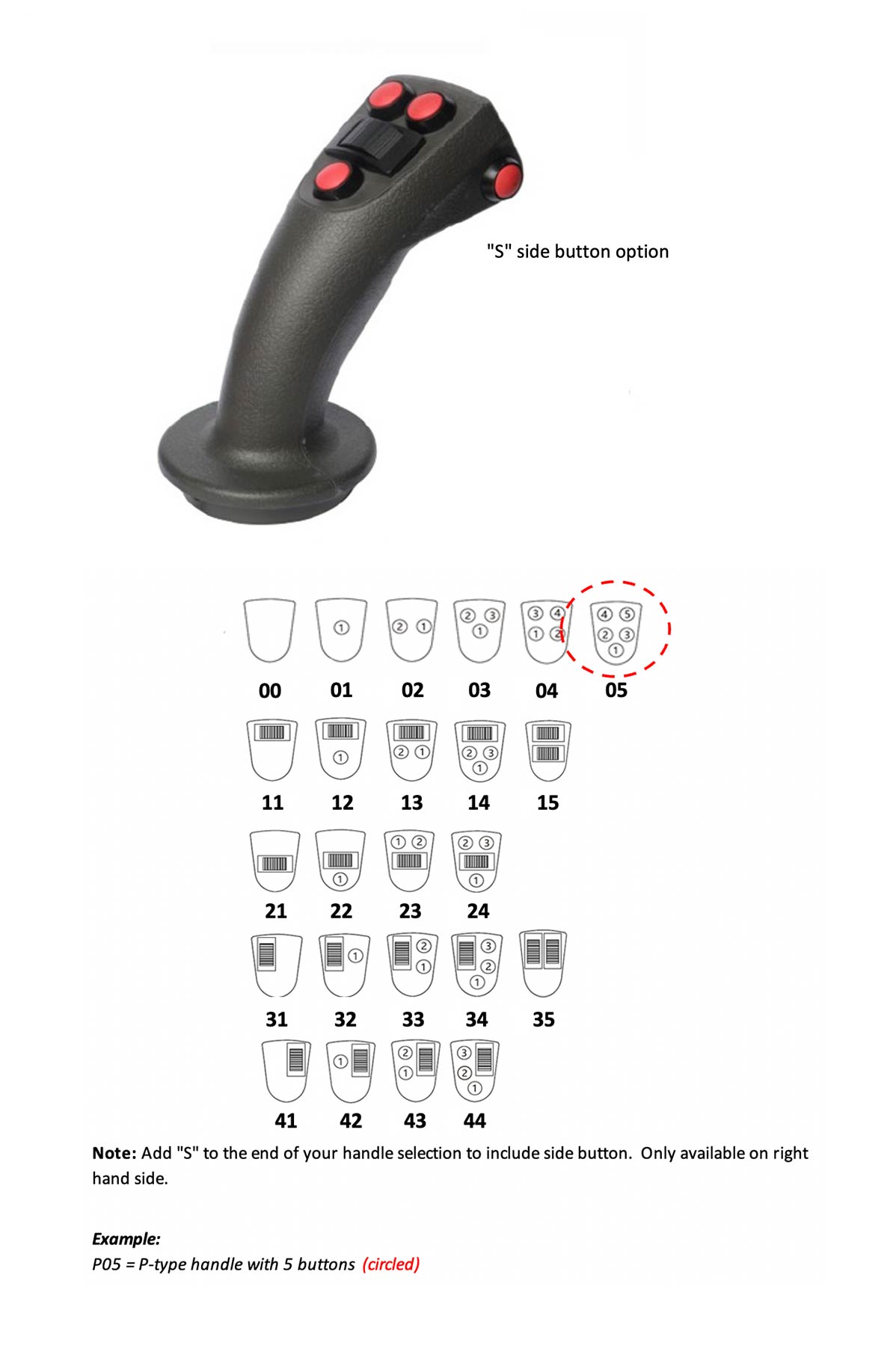

P-Style Handle |
|---|---|
 |
 |

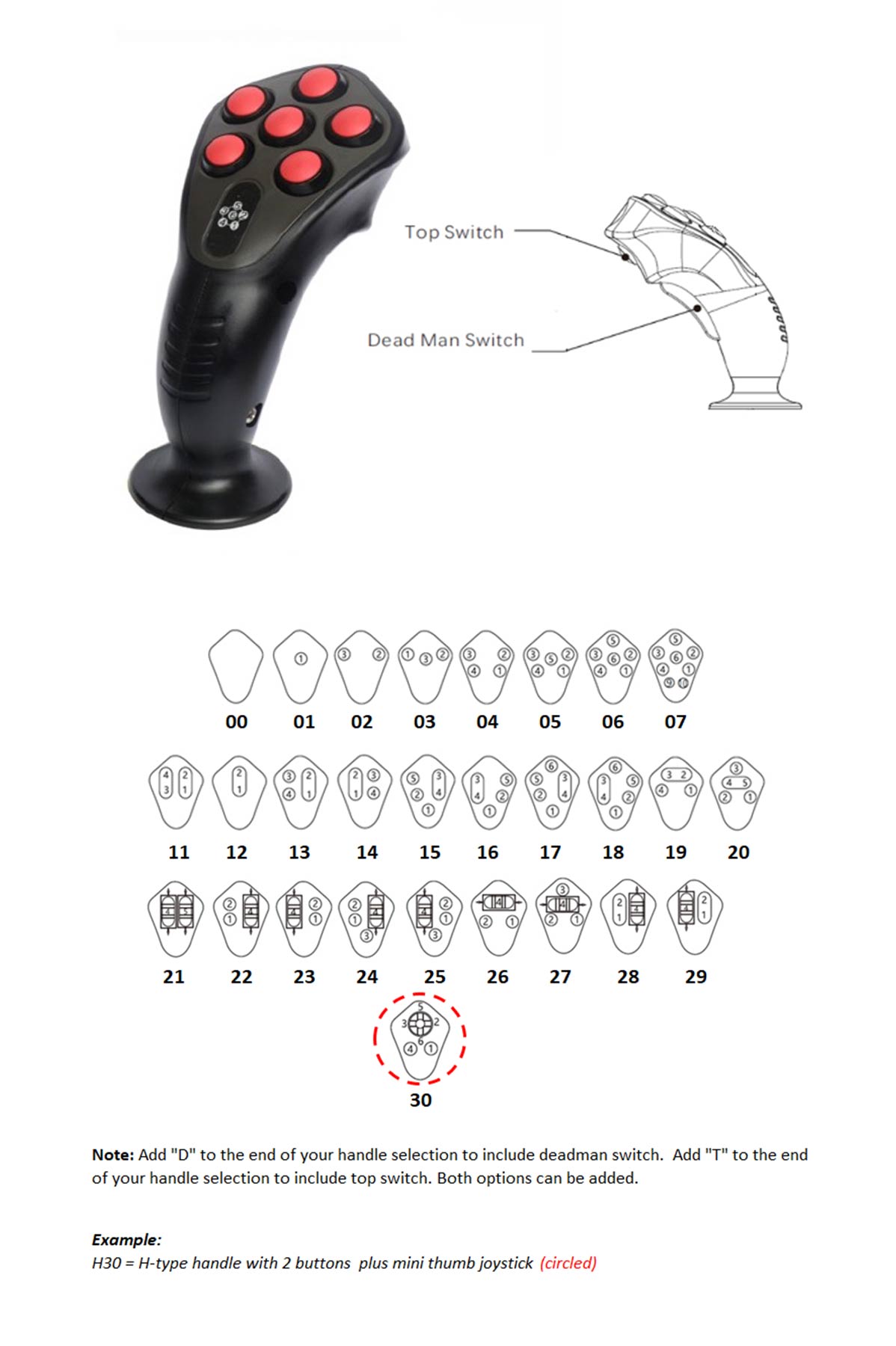

H-Style Handle |

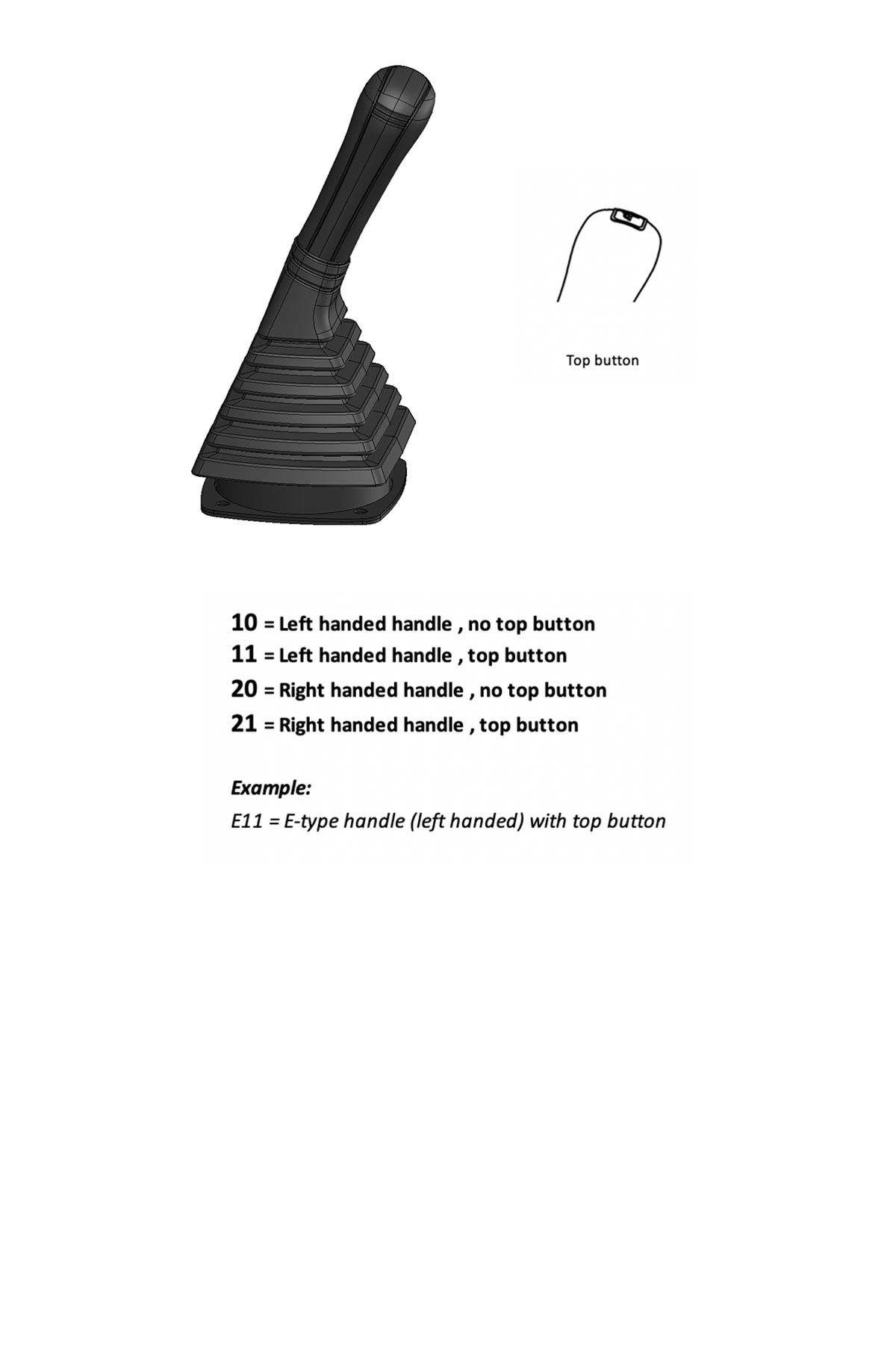

E-Style Handle |
|---|---|
 |
 |
F-Style Handle |
G-Style Handle |
|---|---|
 |
 |

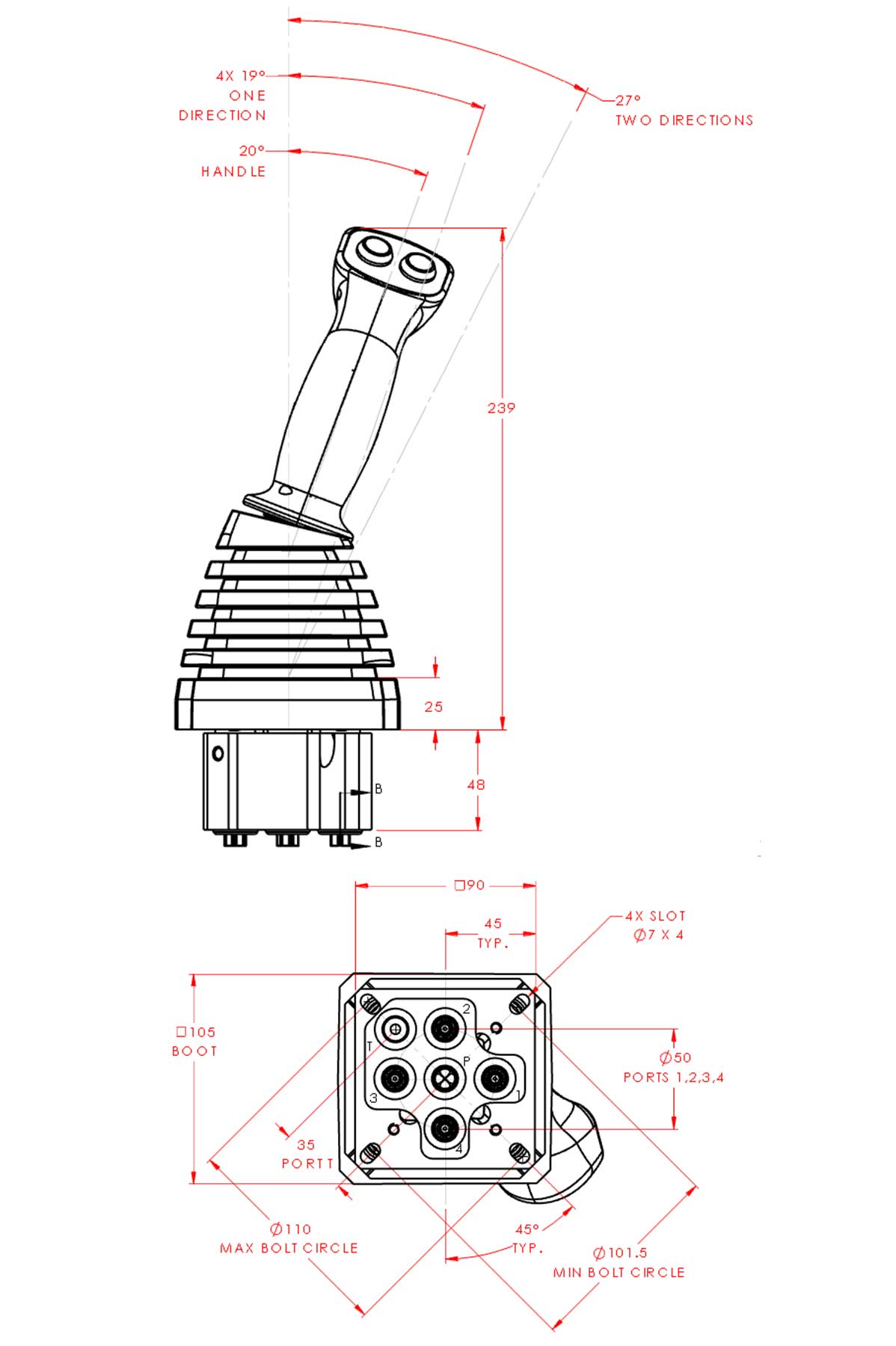

JSC with Q-Style Handle |

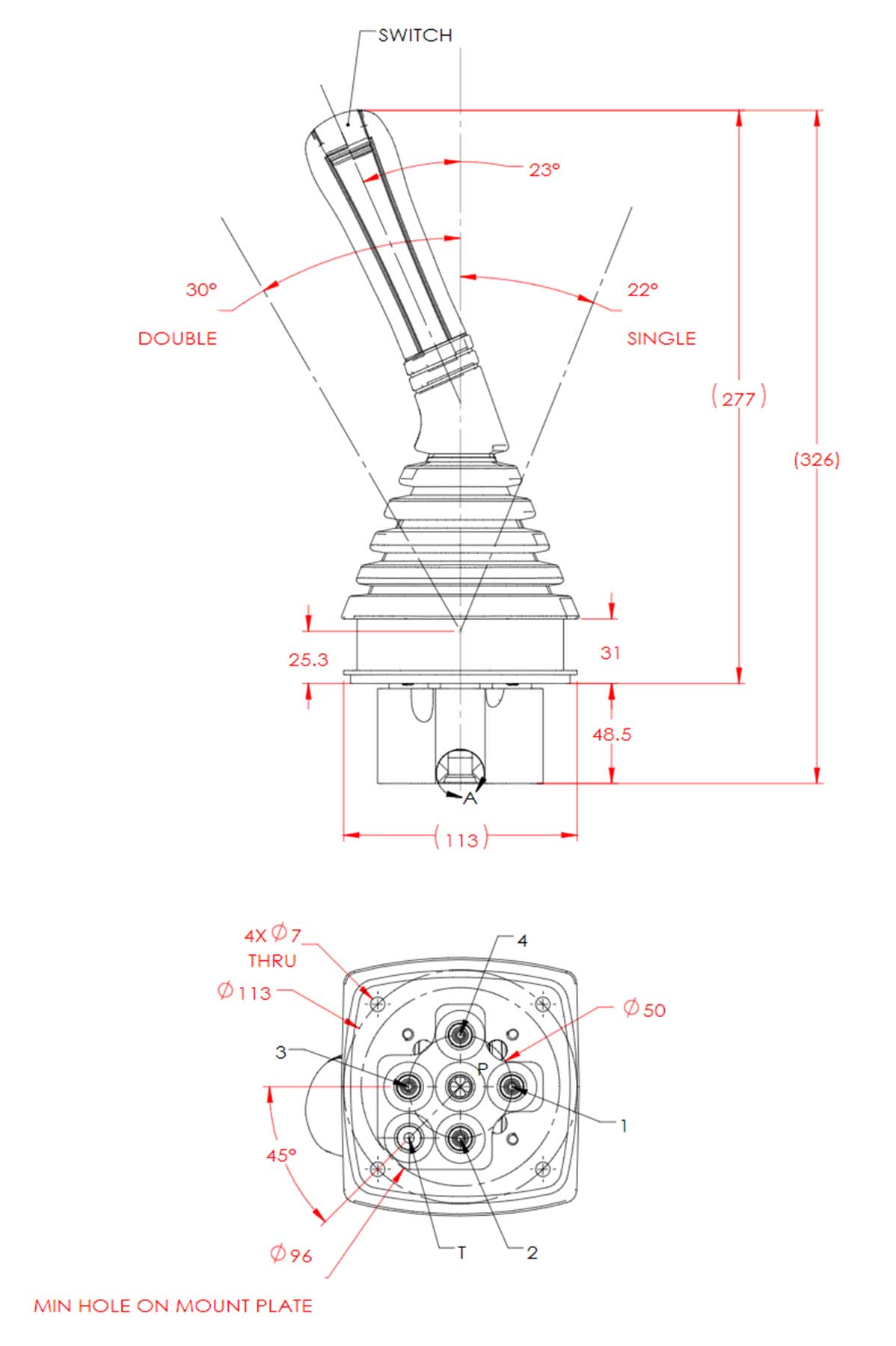

JSC with E-Style Handle |
|---|---|
 |
 |
