JSH Hydraulic Joystick

JSH Excavator Joystick

JSH with Custom Handle

JSH 4-button with Round Boot

JSH 2-button with Shuttle Valve

JSH 3-button with Deadman

JSH +1

JSH Hydraulic Joysticks

Built using proprietary Step Bore Technology, our hydraulic joysticks provide up to 30 lpm flow with up to 50% less effort than conventional pilot valves, while maintaining precision hysteresis below 1%.

KEY FEATURES/BENEFITS:

Low-effort design reduces operator fatigue
High response delivers accuracy and control
Aluminum body and cartridge design provide lower leakage, lower mass, and better-quality control
On-spool dampening for less noise
Easily configurable to deliver the optimum design for your specific application
Standard and custom port sizes
Multiple handle options and configurations

Get Hydraulic Joysticks in Weeks, Not Months

LEARN MORE ABOUT OUR STOCKING PROGRAM

Configurator

Configure Your JSH Joystick

Please fill out the following fields to configure your joystick. If you have any issues, contact us.

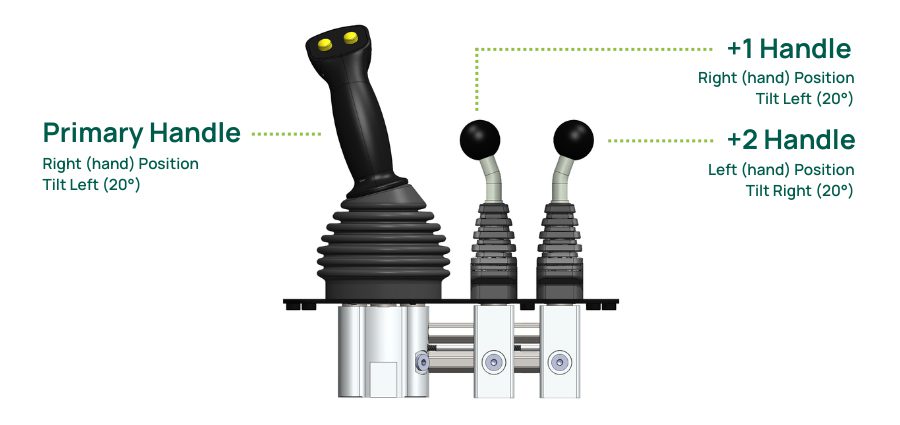

Use this graphic as reference when selecting +1 or +2 Handles.

"*" indicates required fields

Series*

Please explain what you're looking for*

Body Material*

Cartridge Quantity*

+1 Cartridge Quantity*

+2 Cartridge Quantity*

Custom Cartridge Quantity*

Options*

Please explain what you're looking for*

Spring Return Force*

Please explain what you're looking for*

Ports*

Please explain what you're looking for*

Primary Boot Type*

+1 Boot Type*

+2 Boot Type*

Primary Handle Type*

Refer to Handles Tab for Handle Types

Primary Button Layout ID*

Refer to Handles Tab for Layout IDs

Please enter a number from 00 to 99.

Primary Handle Position*

Primary Handle Tilt (20°)*

Please explain what you're looking for*

+1 Handle Type*

Refer to Handles Tab for Handle Types

Please explain what you're looking for*

+1/+2 Handle Type*

Refer to Handles Tab for Handle Types

Please explain what you're looking for*

+1/+2 Button Layout ID*

Refer to Handles Tab for Layout IDs

Please enter a number from 00 to 99.

+1 Handle Position*

+2 Handle Position*

+1 Handle Tilt (20°)*

Please explain what you're looking for*

+2 Handle Tilt (20°)*

Please explain what you're looking for*

Curve Type*

Refer to Curves Tab for Curve Types

Please explain what you're looking for*

Curve Type*

Refer to Curves Tab for Curve Types

Please explain what you're looking for*

Control Curve ID*

Refer to Curves Tab for Curve IDs

Please enter a number from 00 to 99.

NOTE: If your control curve is not included on the catalogued list, please use "00" for the control curve ID and specify requirements in the notes section on the next page.

Stroke*

Please explain what you're looking for*

Name*

First Last

Company*

Email*

Phone*

Quantity*

Requested Delivery Date*

Address

Street Address Address Line 2 City State / Province / Region ZIP / Postal Code Country

Additional Notes

Product Code

Configure Your Product

Send Your Product Code to QP

Specifications

Working Pressure:	40 BAR
Max Operating Pressure:	100 BAR
Max Back Pressure:	3 BAR
Max Flow:	25 L/min
Temperature Range:	-20 deg C ~ 90 deg C
Fluid Type:	Mineral Oil ISO, HM & HV (10W recommended)
Max Install Torque:	390 kgf/cm
Service Ports:	G1/4”BSPP & #6 SAE (9/16″-18 UNF)
Body Material:	Aluminum/Steel
