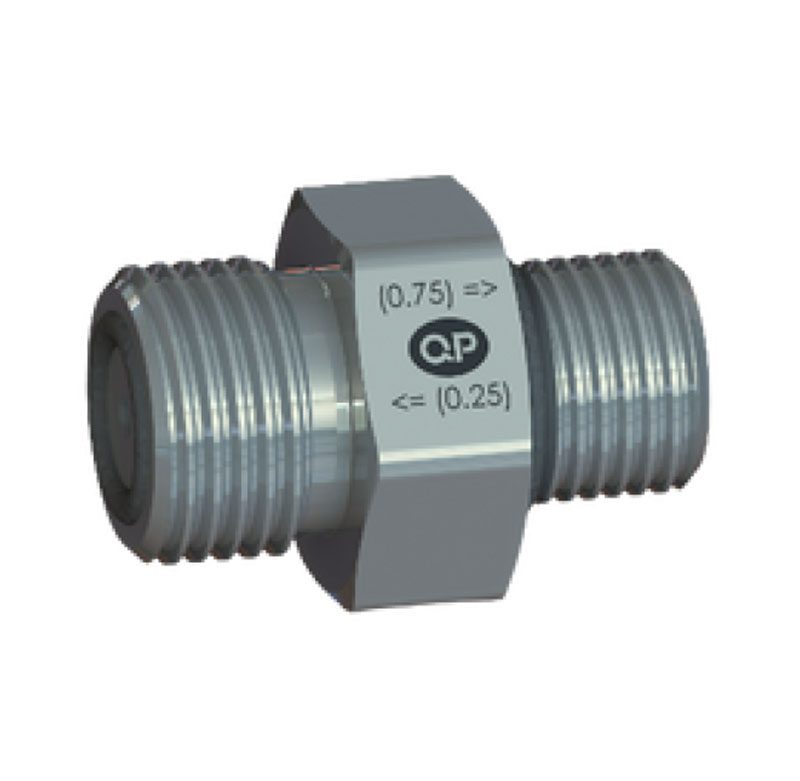

Inline Throttle Valve

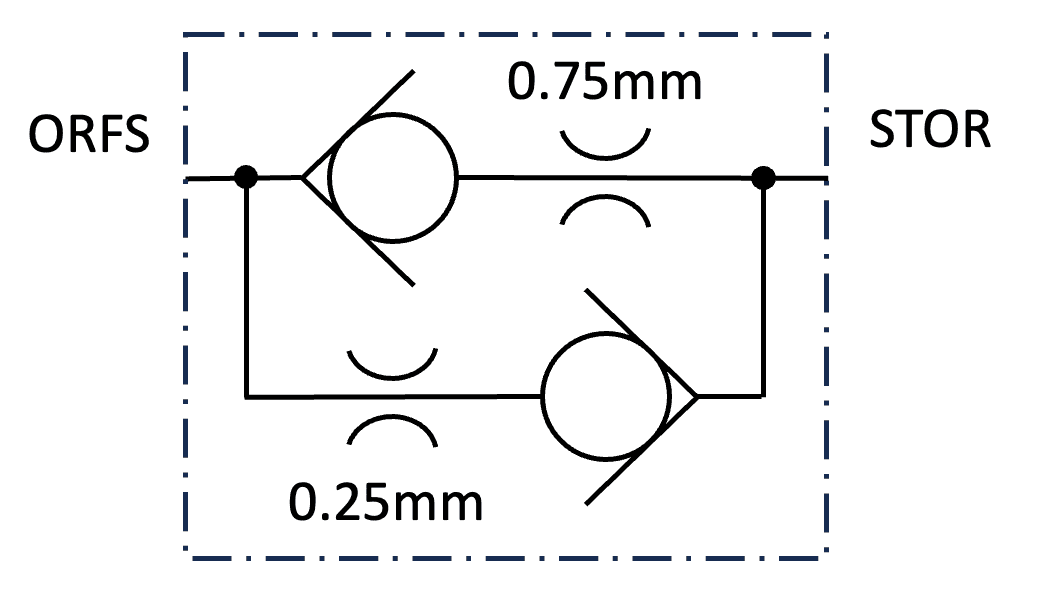

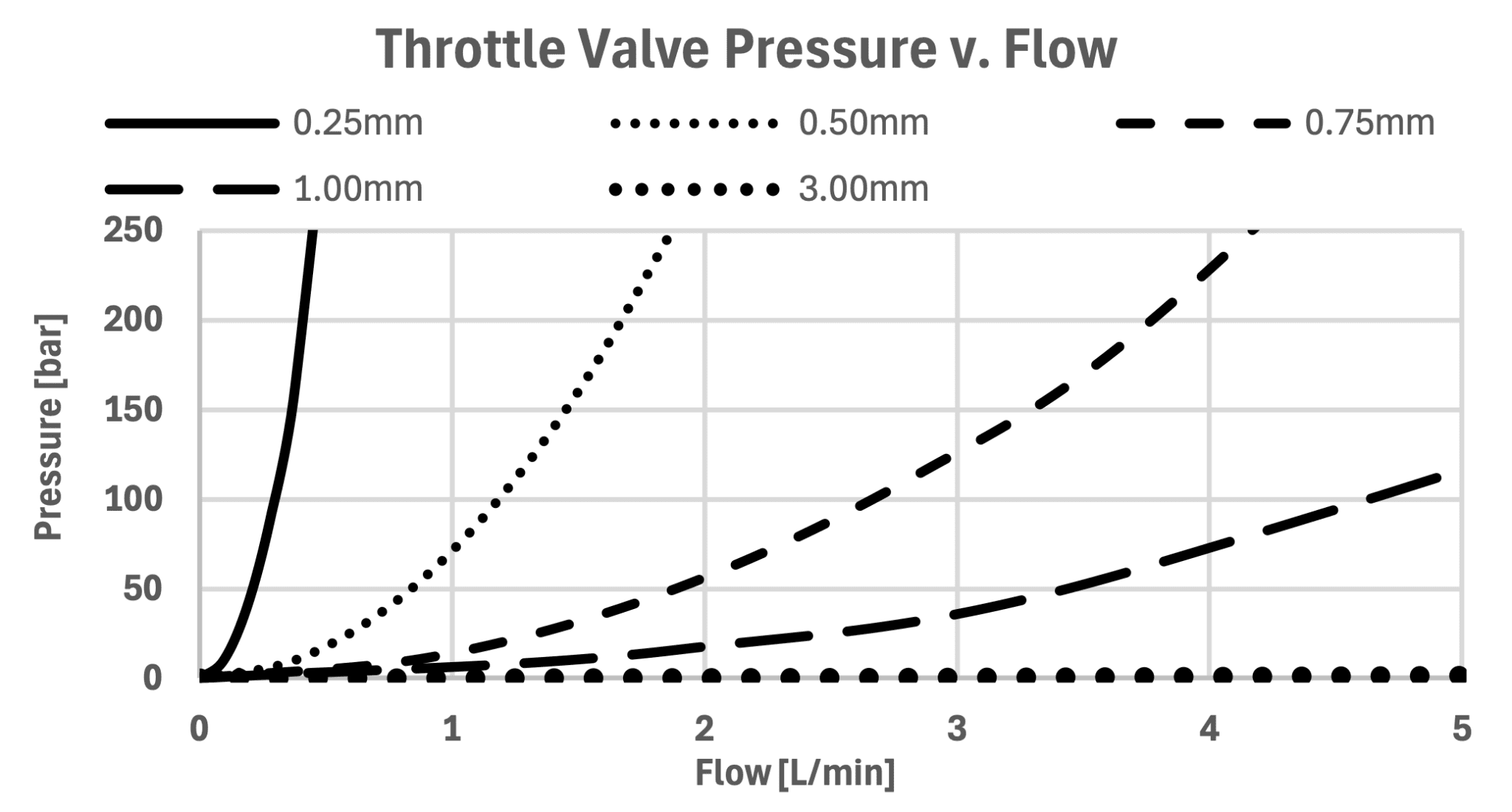

This in-line throttle valve restricts flow more in one direction than the other. The valve is often used to diagnose, dampen, and reduce noise.

KEY FEATURES/BENEFITS:

  • Easy application installation to diagnose or implement on your hydraulic system
  • Different orifice combinations can be readily installed
  • No retaining rings or snap rings
Max Pressure: 350 bar [5076 psi]

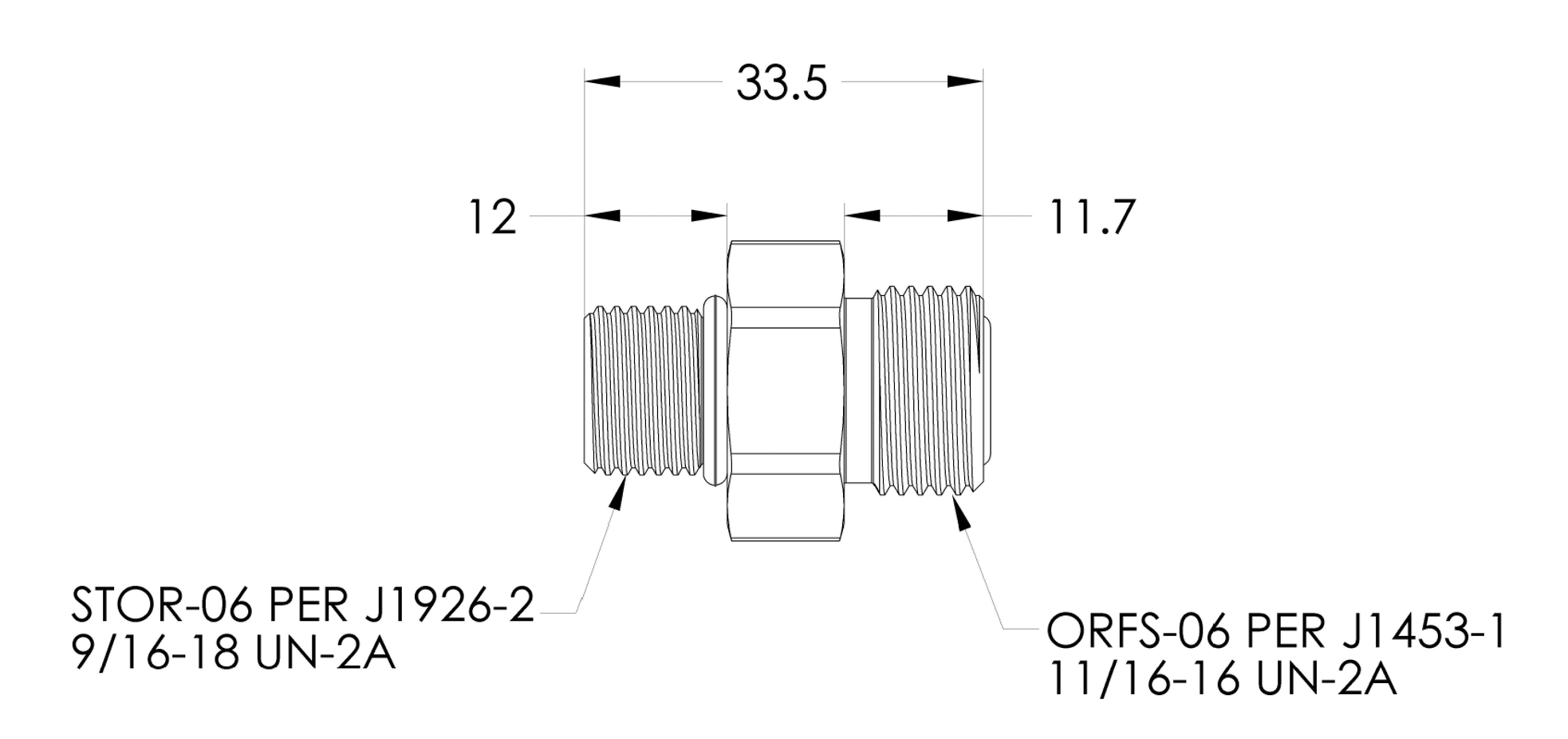

Torque, ORFS: 45 +/- 5 N*m [33 +/- 4 ft*lbf]
Torque, STOR: 55 +/- 5 N*m [33 +/- 6 ft*lbf]
Operating Temperature: Seal Operating Ranges:
Nitrile: -40F to 2121F (-40C to 100C)
Flurocarbon: -15F to 400F (-26C to 204C)
Urethane: -35F to 200F (-37C to 93C)
Corrosion Protection: 100 hr (salt spray before red rust)

Configure Your Product
