JSE Electronic Joysticks

Built using our twenty years of experience with hydraulic joysticks and based on designs that have been awarded multiple patents, the JSE combines what operators love about our JSH with the ability to be digitally integrated and programmed to your needs. Unlike other electronic joysticks, with our JSE operators experience the control and the feel of the system. And with multiple efforts available for each axis, we can customize your JSE specifically to your application.

The JSE has all the features, benefits, and options of our hydraulic joysticks — but can also output analog (0-5V) or digital (CANBUS) signals. There’s never been an electronic joystick like this one!

Supply Voltage: 9 ~ 36 VDC Continuous
Max Current Consumption: 20 mA
Communication from Output Controls: Analog / CAN Open / J1939
Lever Angle: Consult Factory
Temperature Range: -40 deg C ~ 90 deg C
Weather Protection: IP67
Inputs: 20 (6 analog & up 20 digital)*

*Maximum total inputs 20. Maximum selectable analog inputs 6. See part description code tab for additional notes.

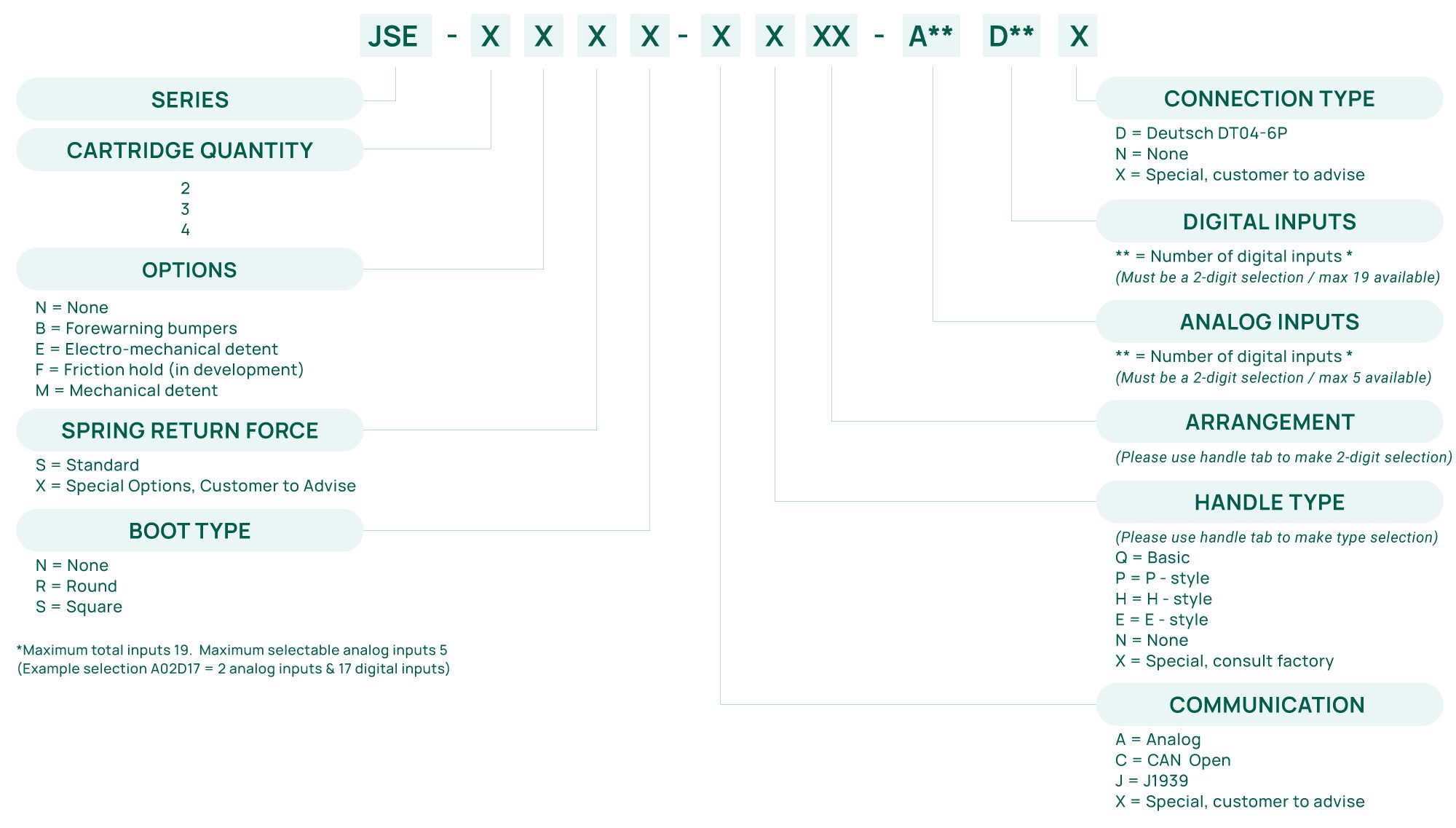

Send Your Product Code to QP

Q-Style Handle

P-Style Handle

H-Style Handle

E-Style Handle
